Name: GROW KS200+R502-AW 4*AA Battery or DC3.7V-6.5V Motor Output Fingerprint Access Control Board For Door Lock Hotel Office
Brand: Zenn Light
SKU: 14:200003428#Motor Mode 4
Price: 47.77 USD
Availability: InStock

Brand Name: grow

Hign-concerned Chemical: None

Origin: Mainland China

Model Number: KS200+R502-AW

Smart home platform: other

Certification: CE

Fingerprint capacity: 200

Stand-by mode current: less than 7uA

Power supply: 4*AA battery or DC3.7V--6.5V

Output: DC5--6V,1.5A(Peak:2.5A)

Administrator Fingerprint: 20 pieces

4*AA battery or DC3.7-6.5V, Motor Output, Low Power Consumption, Admin/User Function

·Power supply：DC3.7V--6.5V

·Stand-by mode current：＜7uA

·Output：DC5--6V,1.5A(Peak:2.5A)

·Administrator Fingerprint：20 pieces

·User Fingerprint：180 pieces

·Low voltage alarm：4.8V (dry battery)

3.5V (Lithium battery)

Motor Working Mode:

①Forward 0.5 seconds → Rest 5 seconds → Reverse 0.5 seconds.

②Forward 1 seconds → Rest 5 seconds → Reverse 1 seconds.

③Forward 1 seconds

④Forward 2 seconds

⑤Self-locking Mode

⑥Hold Mode

1 Register Administrator Fingerprint:

Long press the SET button,release finger when shows blue indicator light on the control board,now the fingerprint module indicator flash fast,put the same admin finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously and it can register 20 pieces administrator fingerprint; if no need adding fingerprint more, waiting a few seconds to exit. If the administrator is fully registered,it will automatically exit the administrator registration state after hear “DiDiDi” and will start register user fingerprint if press SET button again.

2 Register User Fingerprint:

Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

3 Delete User Fingerprint:

Press the administrator fingerprint until red indicator light flash fast and hear music,means user fingerprints are deleted.

4 Factory Setting:

Long press the SET button,until shows red indicator light on the control board and hear the music, then release the finger,means initialization operation successful.

Note:

1.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.

2.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.

3.In hold mode, when register user fingerprint, press the administrator's fingerprint first. After passing, lift the finger and press the administrator's fingerprint again. When the light flashes and hear the music sounds, the user's fingerprint can be registered.

KS200 suitable for R502-A,R502-F,R502-AW,R503,R503-M22 fingerprint module.

Model	R502-AW
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	50508.4 (mm)
Effective collection area	Diameter 15.5 (mm)
Enclosure material	Zinc alloy
Connect control board	KS200/K202/K215/KL216/K219-A/K220/KS220/K236-A
Connector	SH1.0-6Pin
LED Control	YES
LED Color	RGB
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

R502-AW Pin Definition

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-AW user manual from this website link:

https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0

You can dowload the KS200 user manual from this website link:

https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

R502-AW Test program operation display video on Youtube:https://youtu.be/Q82Zg4iFHOA

If need SDK files,pls contact us.

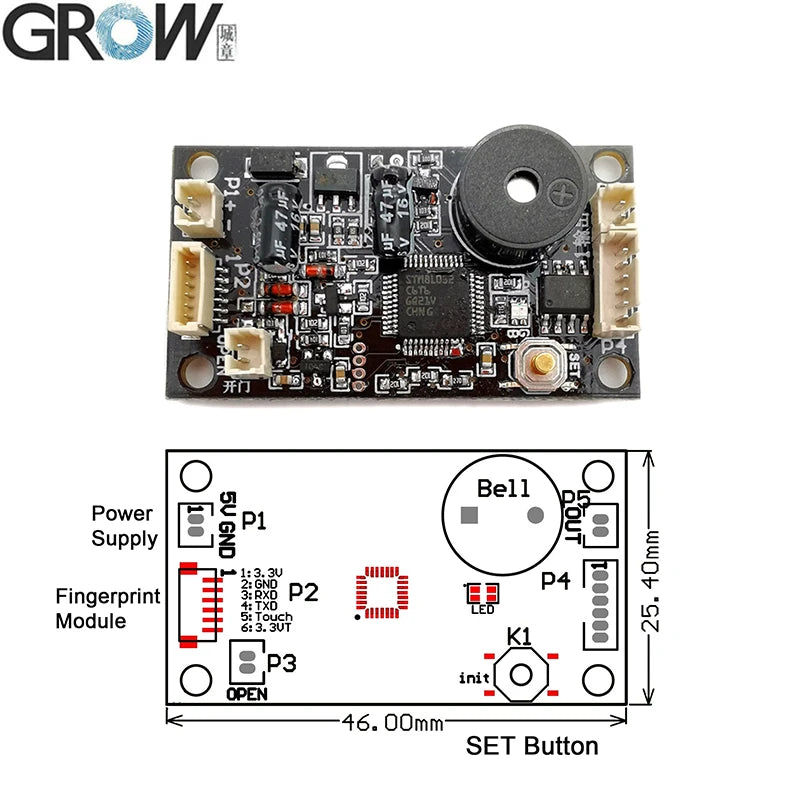

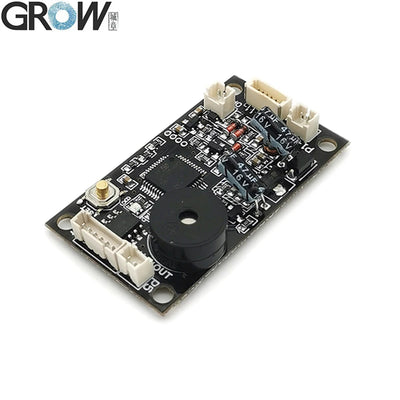

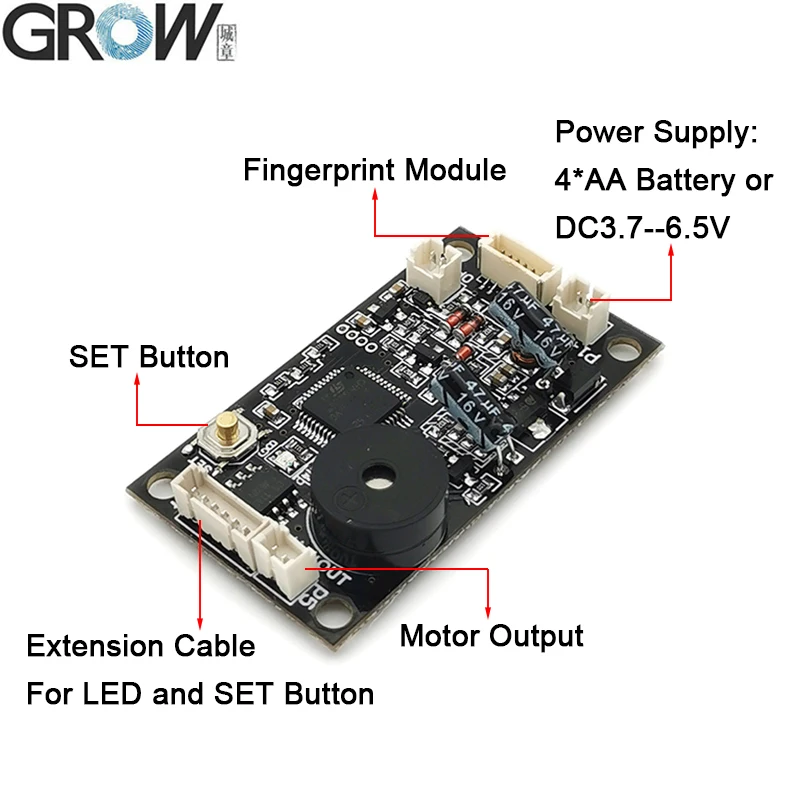

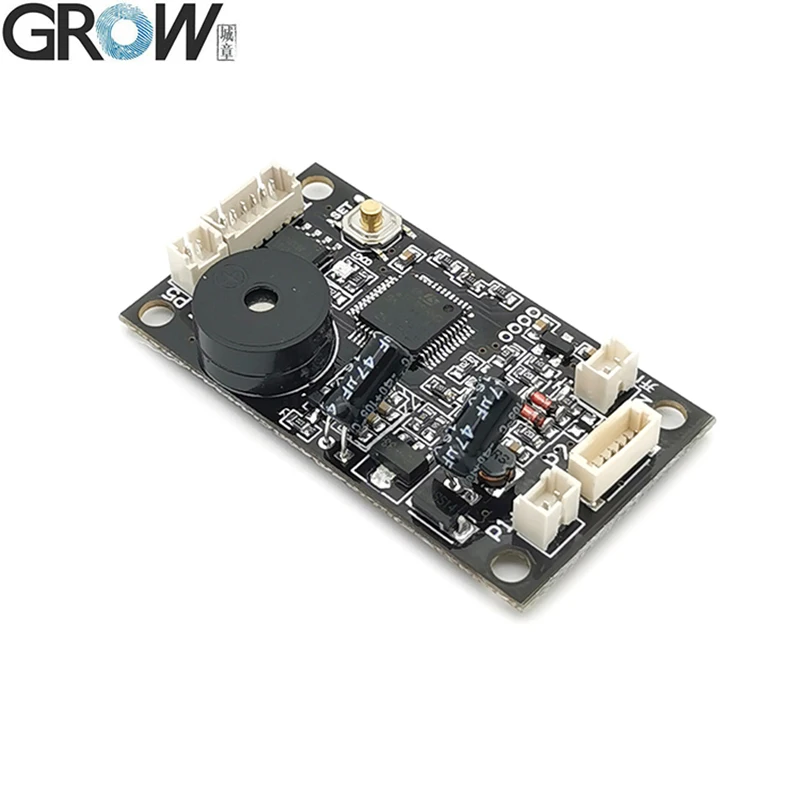

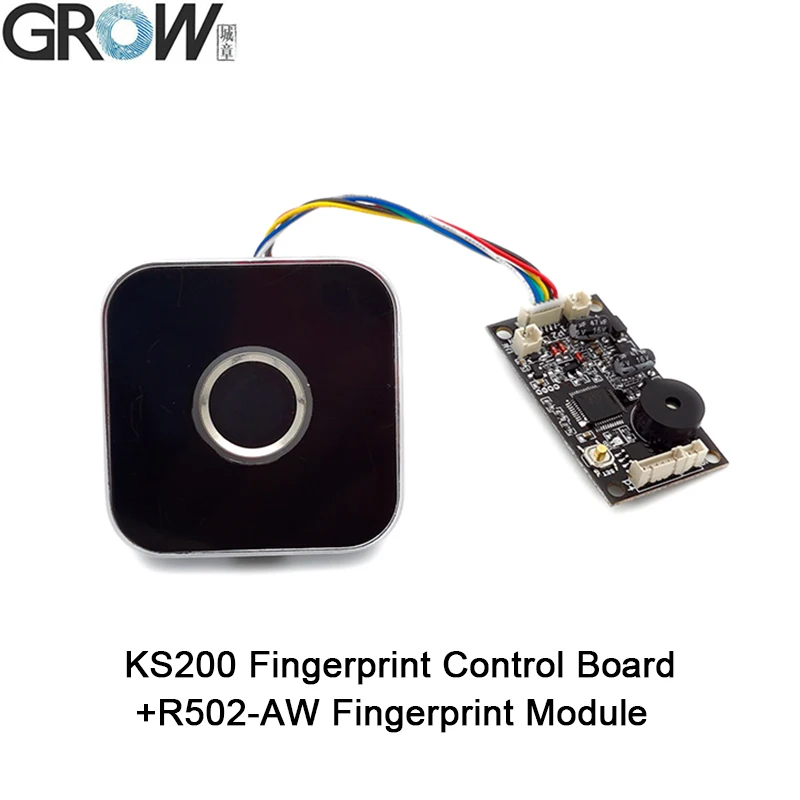

KS200 Circuit board diagram

KS200 Extension SET Button

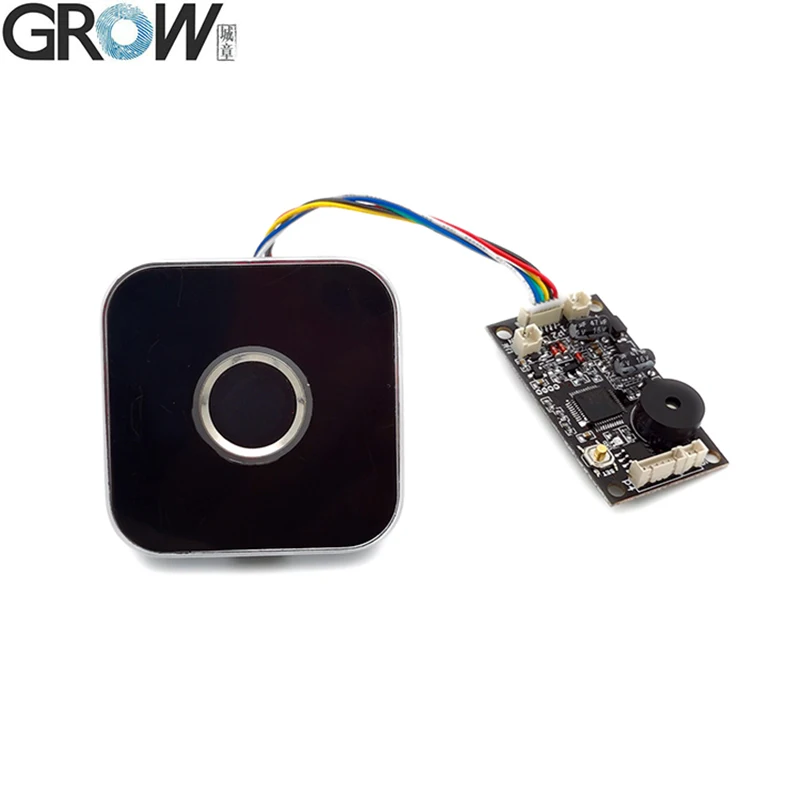

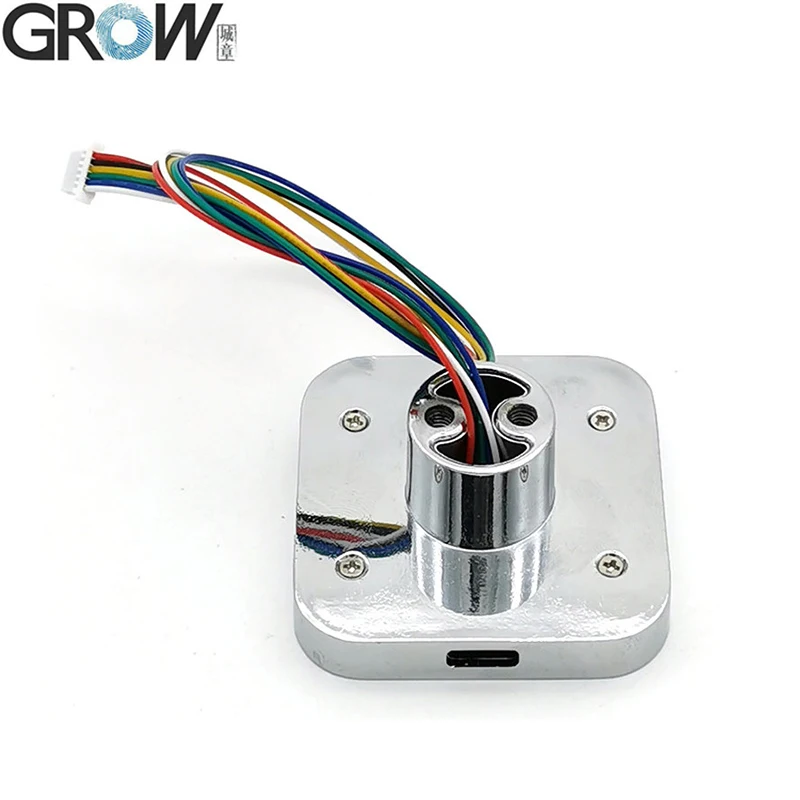

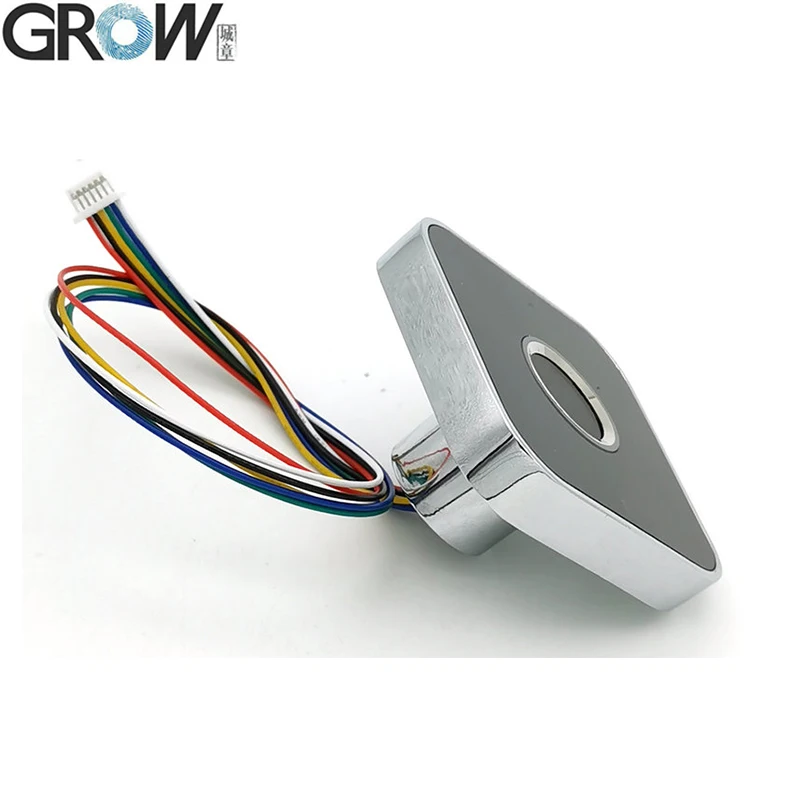

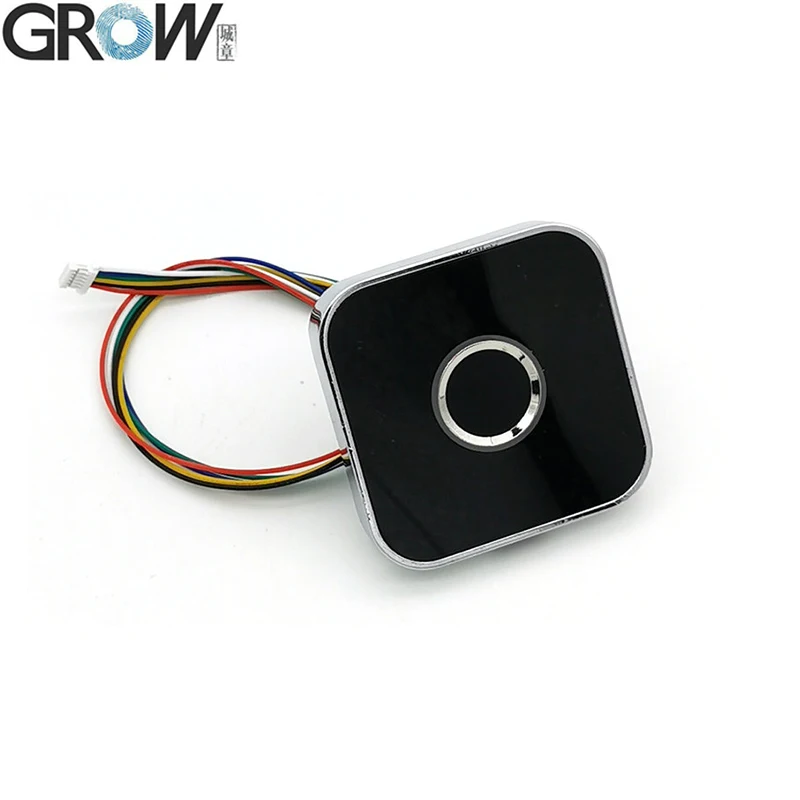

R502-AW Fingerprint Module
