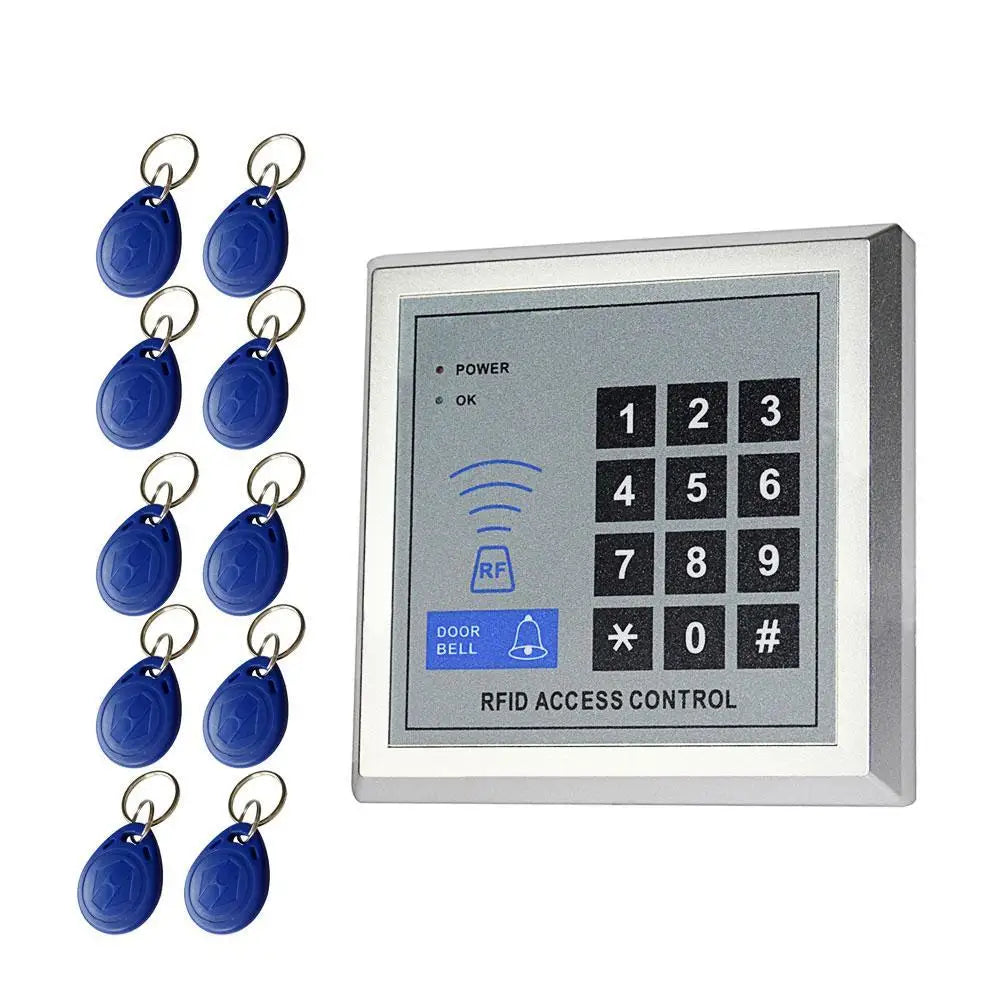

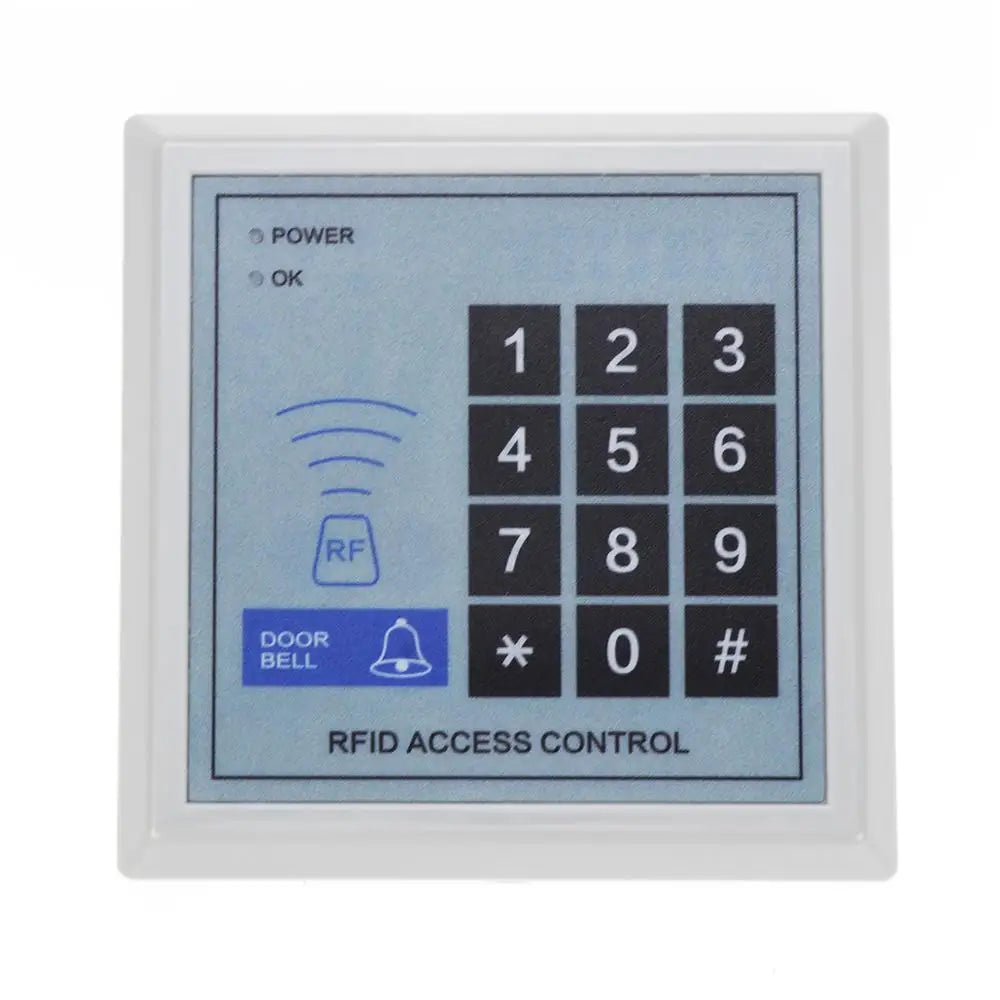

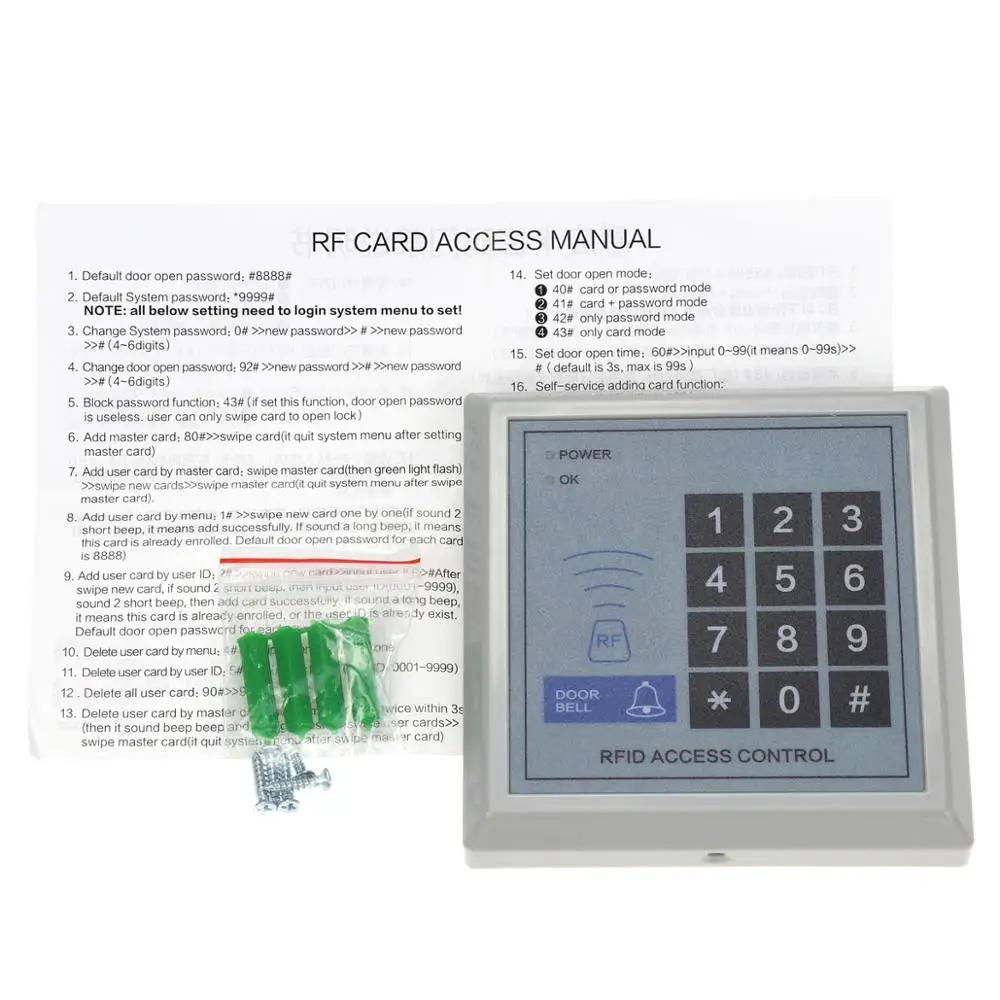

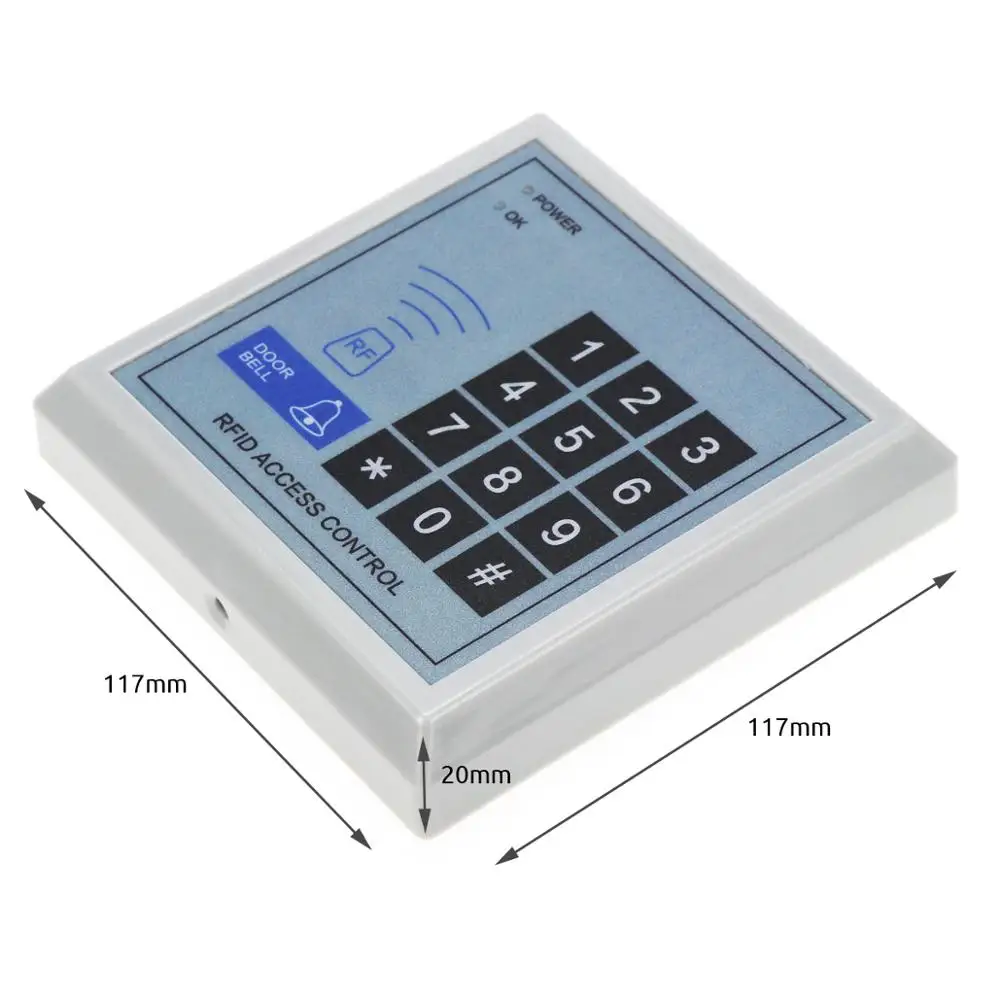

AC RFID Access Control

Classical Appearance with useful function
Professional Design and Quality for Home and Office High Security
Working voltage: DC 12V
RFID Card Capacity:1000 cards,a "Personal PIN" goes alone with each card
Lock relay time:3 seconds
Card read distance:5-50 mm
RF card type: EM or EM compatible card
Working temperature: -10~70 C
Door Bell Option

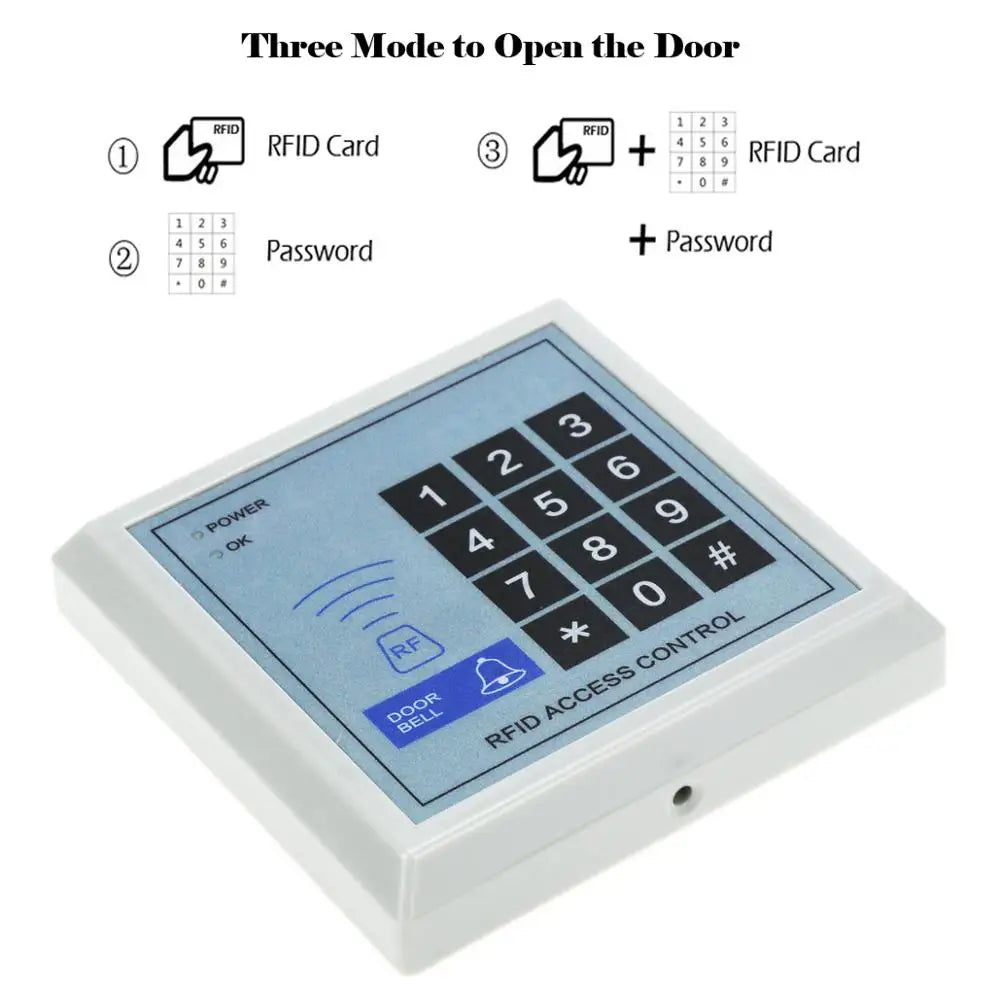

Door Open options (admin user selectable) : Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only
Dimension: 11.8cm11.8cm2.3cm( approx)
Color:as the picture show

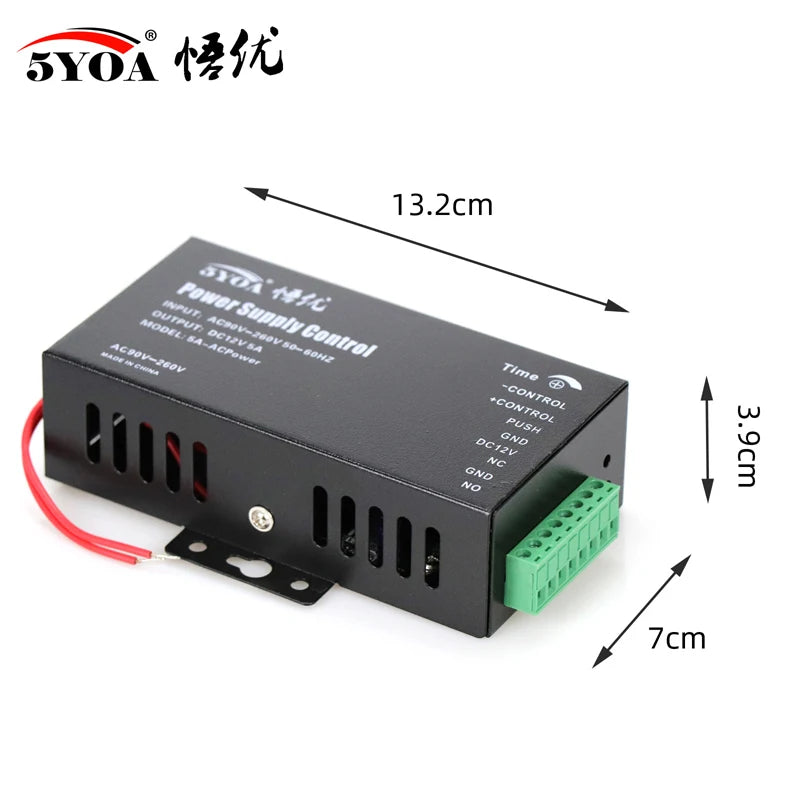

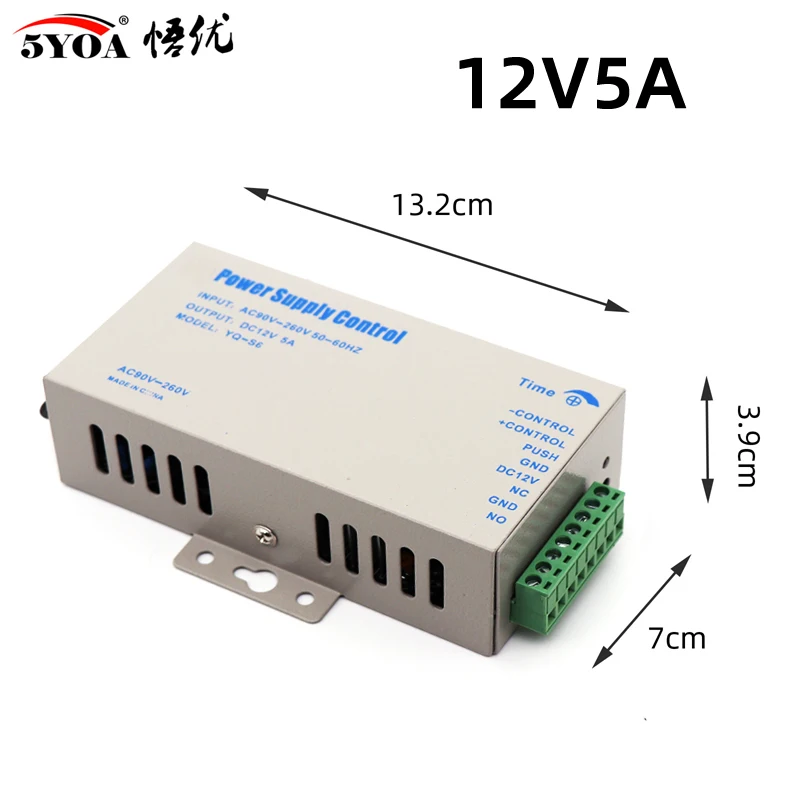

12V5A Access Control Power Supply

This is a 90V-260V(12V5A) Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-IC Reader .etc.

It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduc the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
Operative device: E/M Lock, Access Controller, Exit Push Button

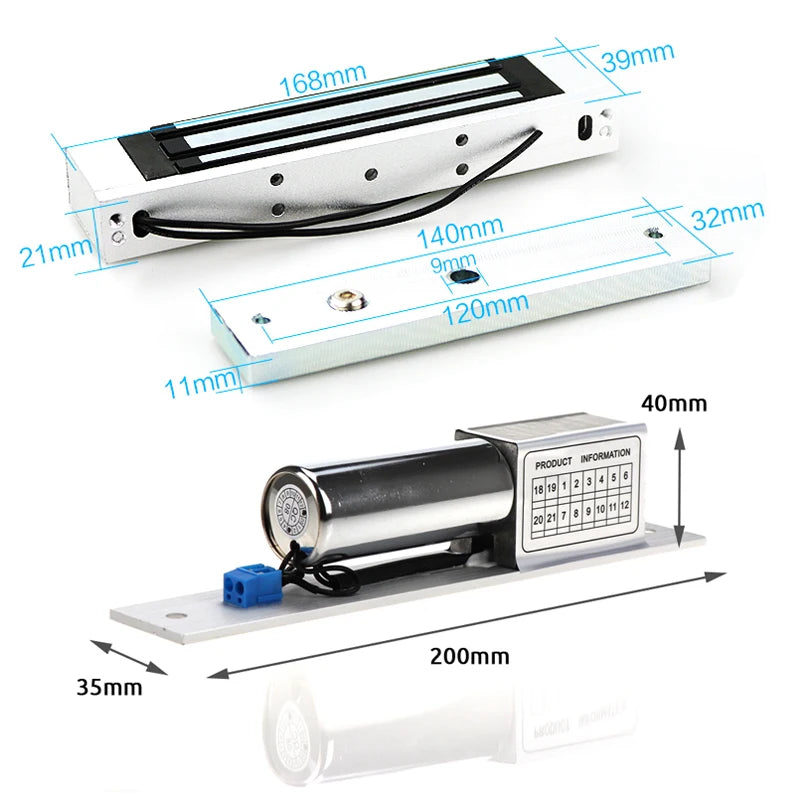

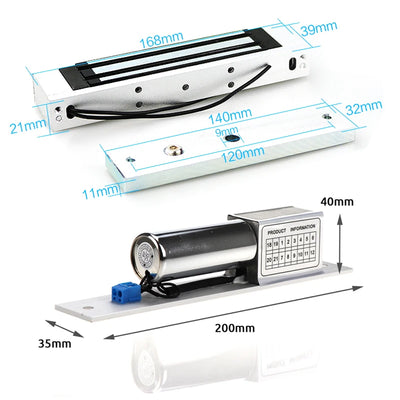

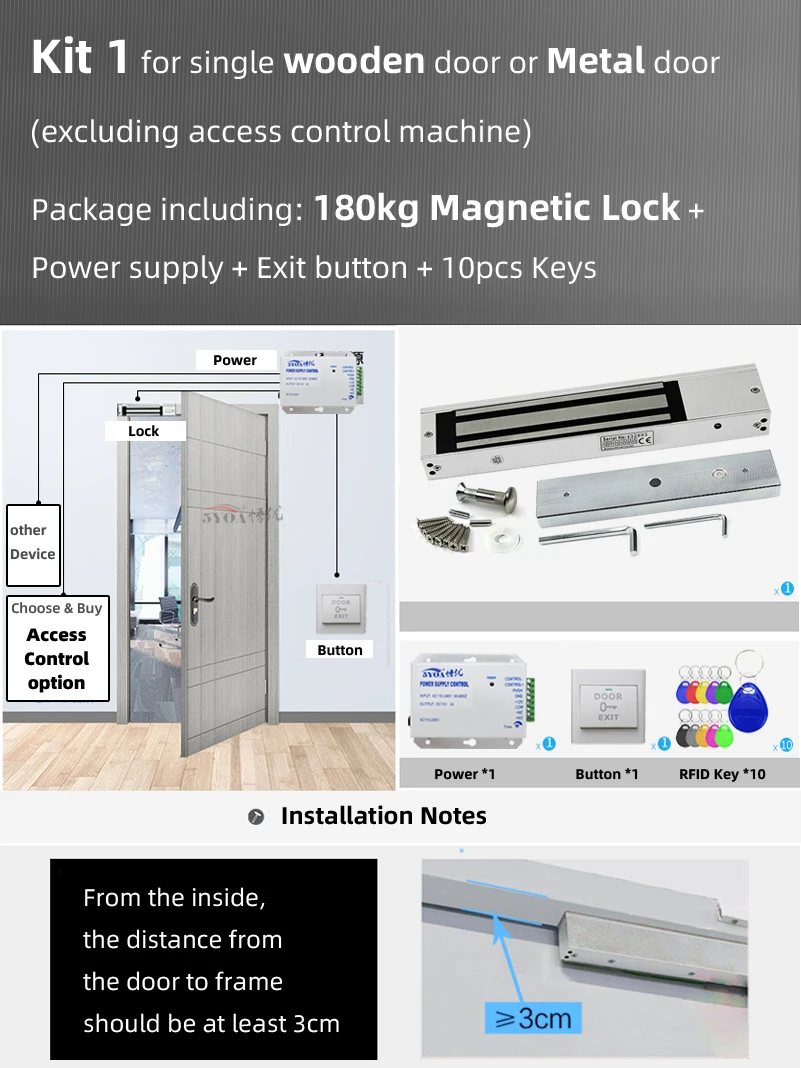

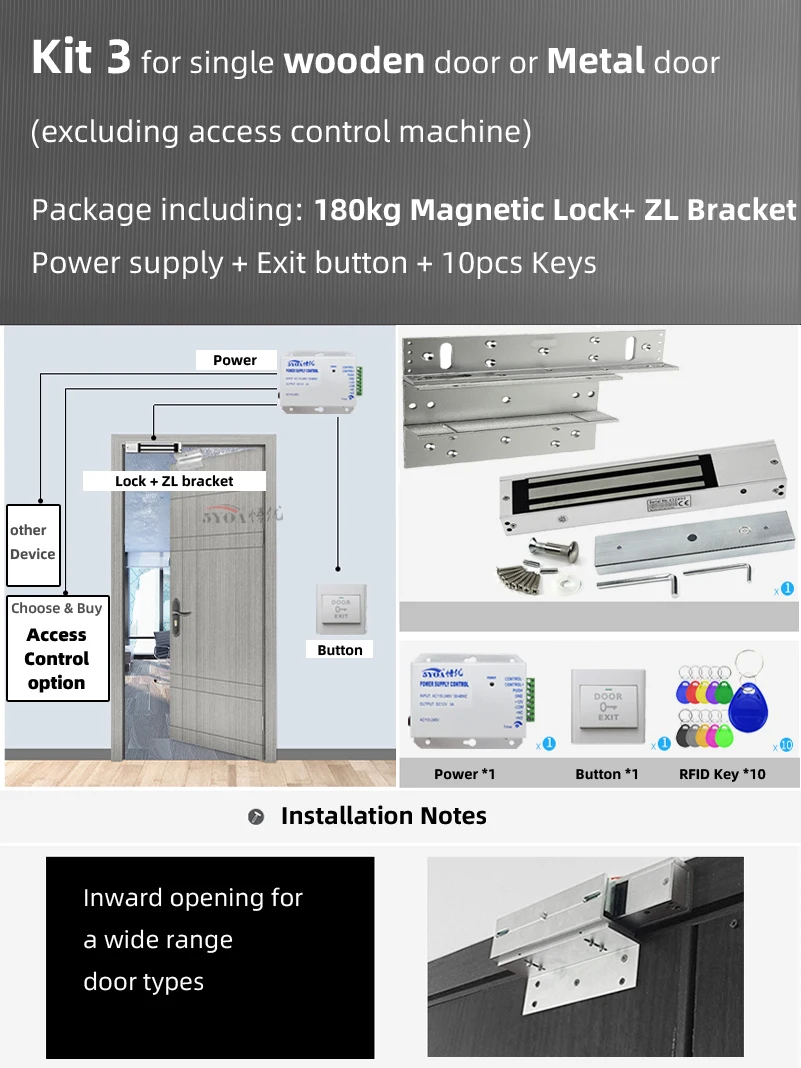

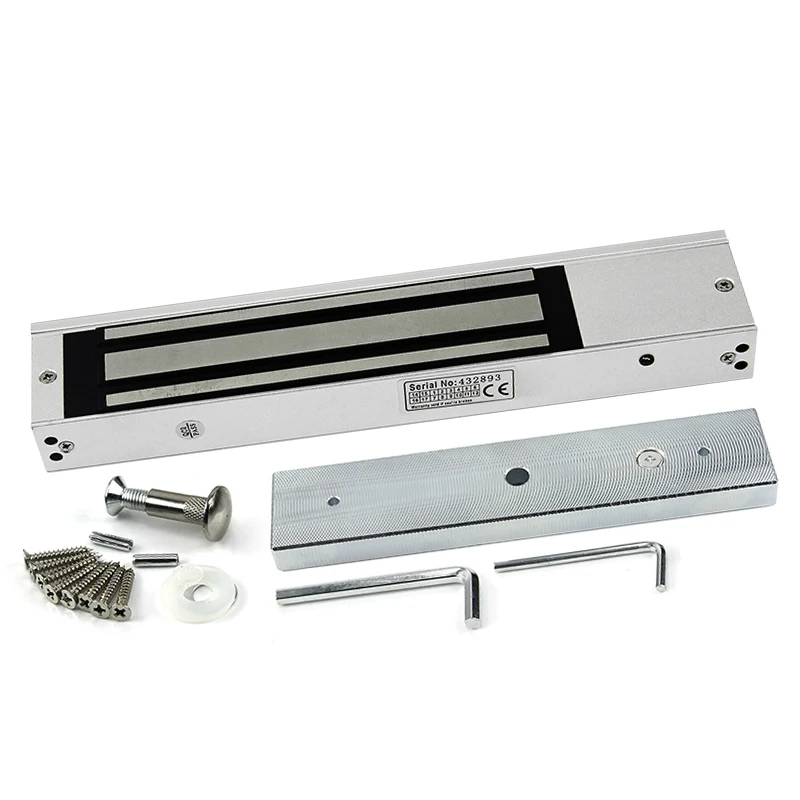

180KG Magnetic Lock

Use magnetic power to lock the door, 180kg(350lbs) holding force (can add fee to upgrade to 280kg 350kg 500kg etc).
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock

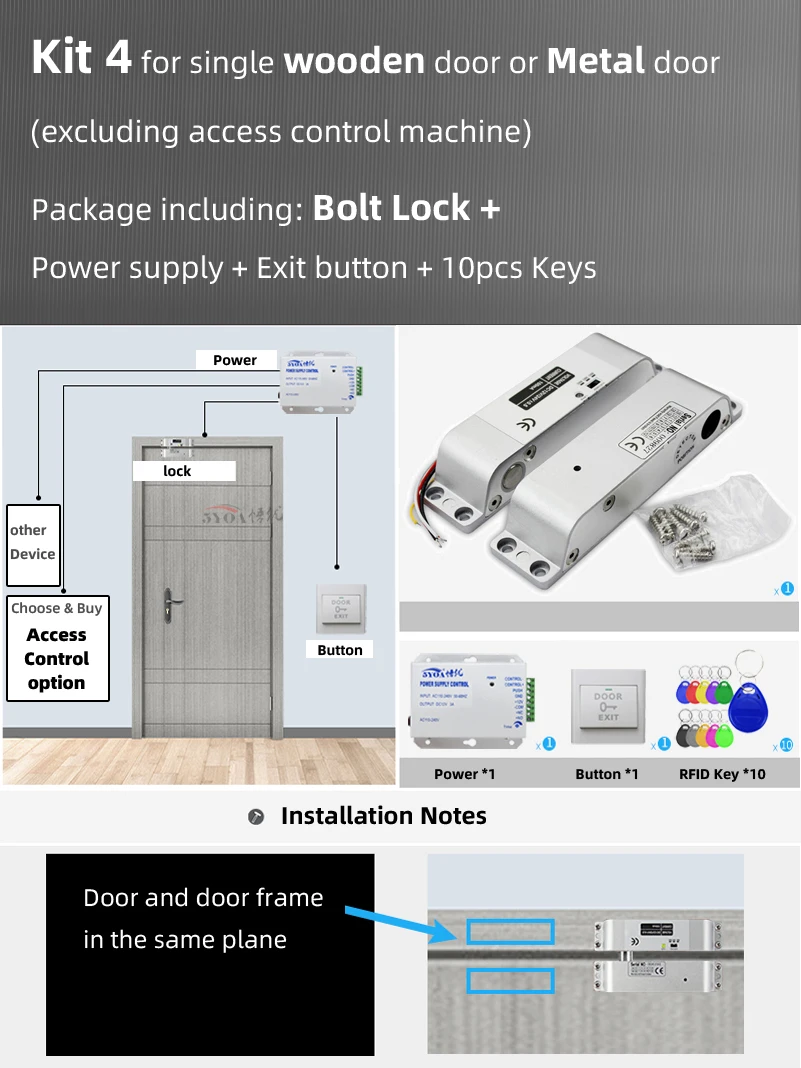

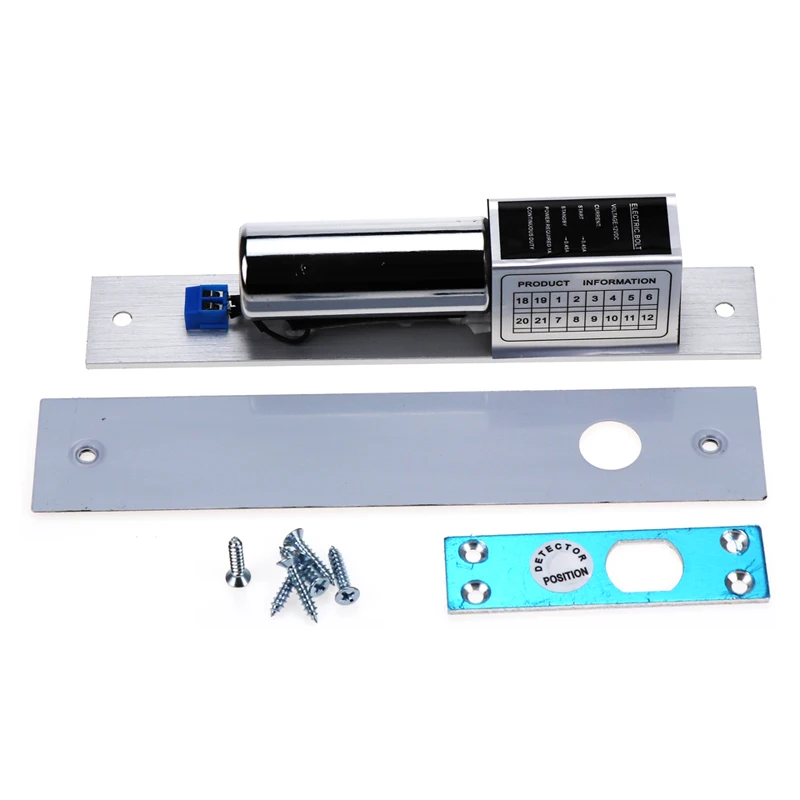

Bolt Lock

Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.
Material: Aluminium Alloy
Working Voltage: DC 12V
Start State: 750mA
Persistent State: 180mA

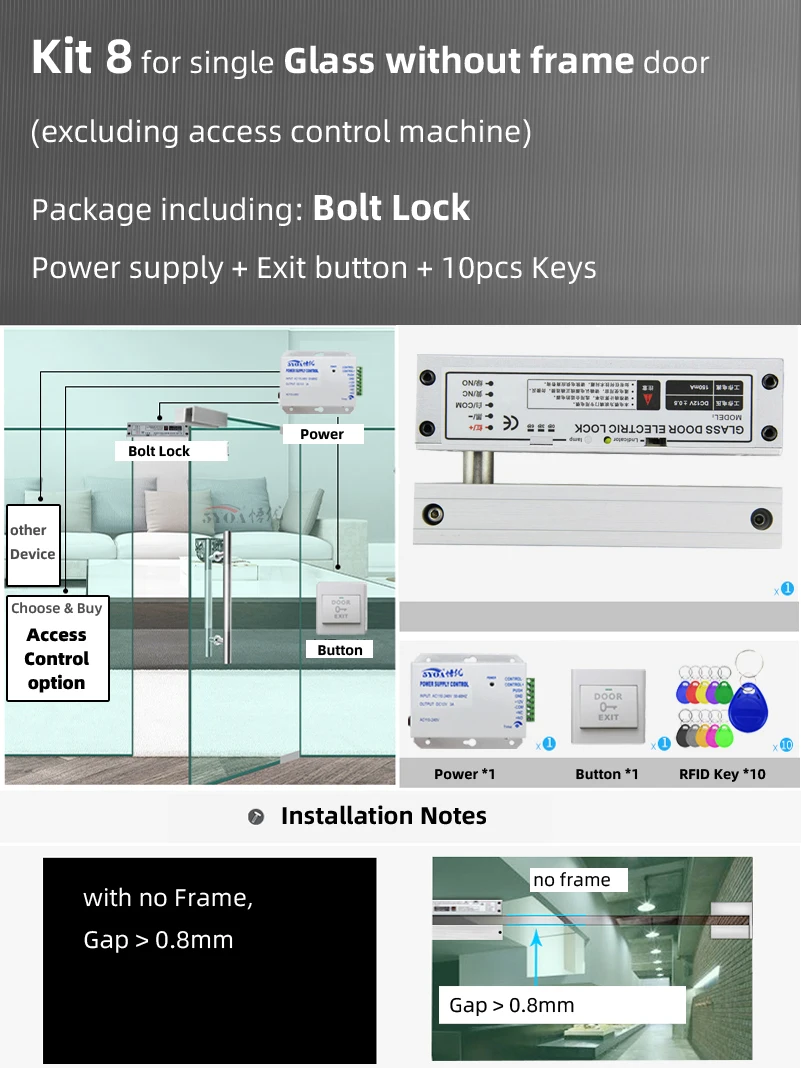

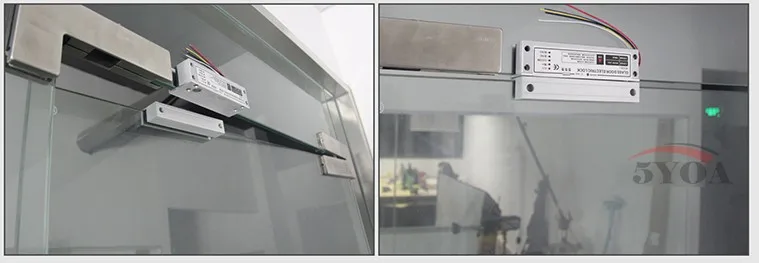

Float Bolt Lock

This door lock is special in design with durable material for Frameless door type. It can protect your home or business shops. Low operational and standby current.

Secure mode: The door will lock while supplied with power, and unlock without power.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.

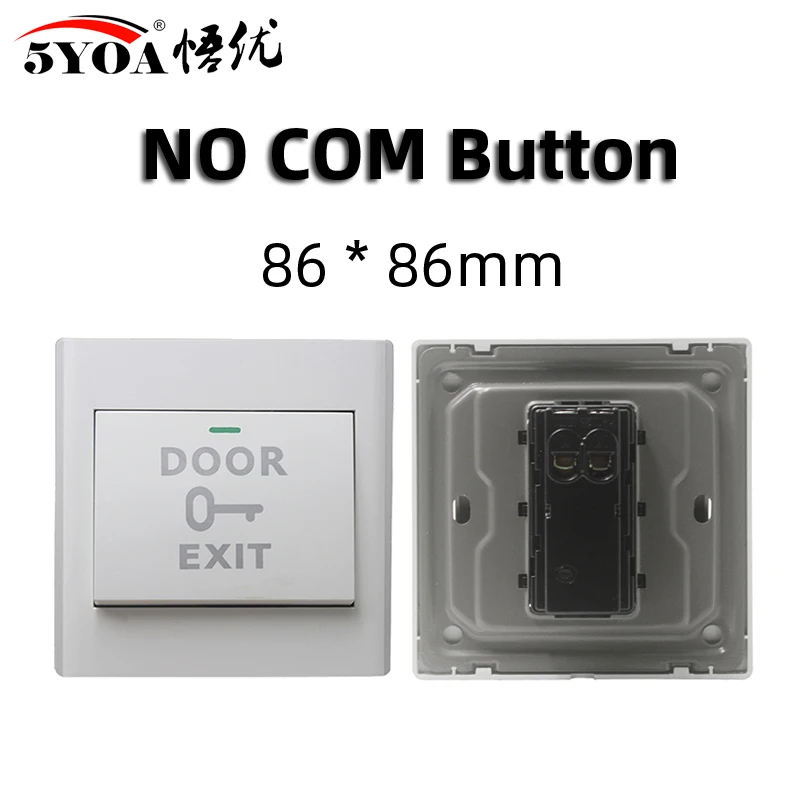

Door Exit Button

Dimensions: length 86x width 86x 25 (mm)
Input voltage: DC12V
Electrical performance: 3A@12VDC
Contact output: NOCOM contact
Durable test: five hundred thousand aging test qualified
Application: apply to all kinds of gate frame
Applicable temperature: -20 ~ +50
Applicable humidity: 95% ~ 0 (relative humidity)

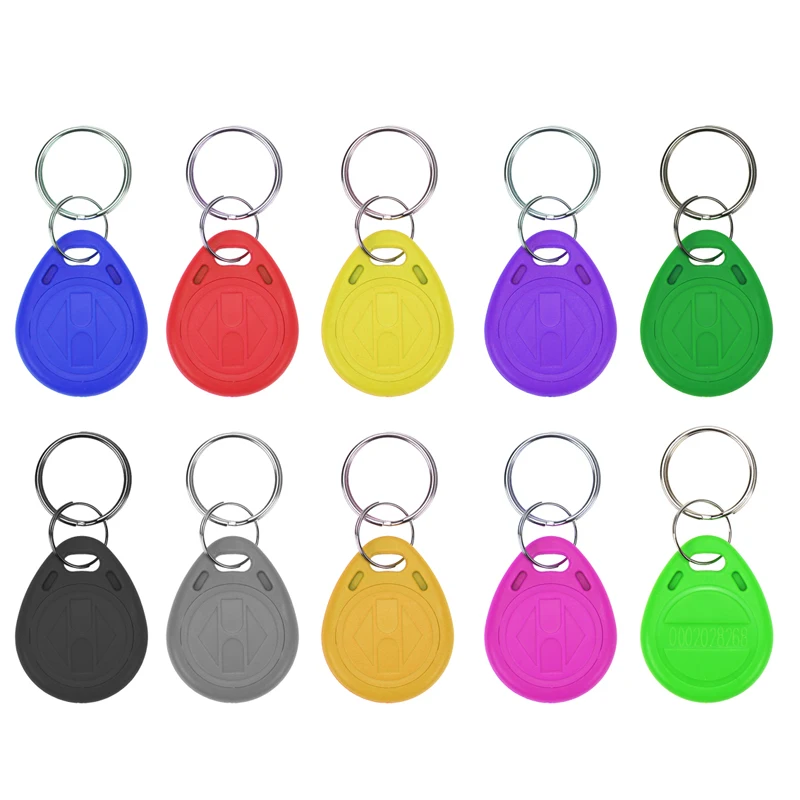

RFID Keys

We have 10 colors as the picture showing, normally we will send by random mixed colors, if need customize the colors sending, please leave message to tell us.

Material: ABS
Dimensions: Approximately 35 x 29 x 50mm
Response frequency: 125 KHz,
Chip type: EM4100, TK4100
Operation Temperature : -40 - 85°C
Waterproof
Application scope: Public transportation, parking, ID identification, attendance system, ticketing, card payment, product logo, etc.
Each comes with Key ring included.
Each token pre-programmed with unique ID which is Laser printed

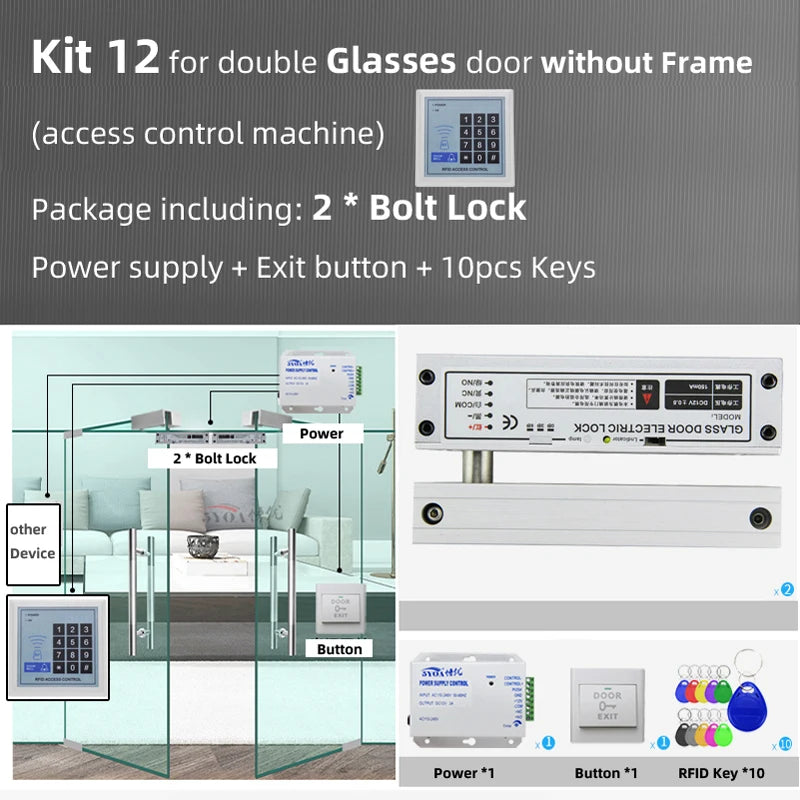

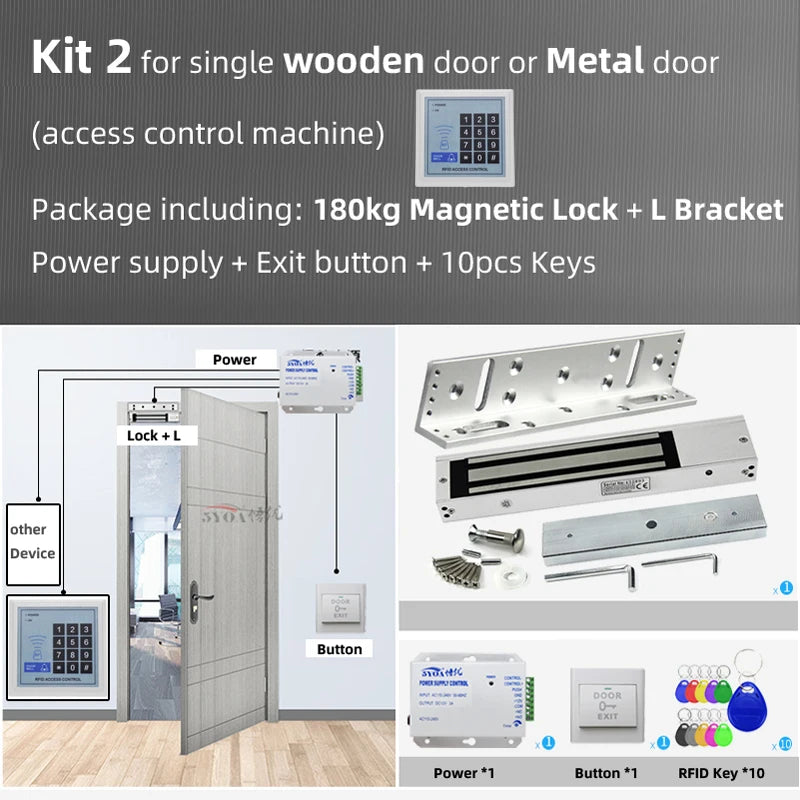

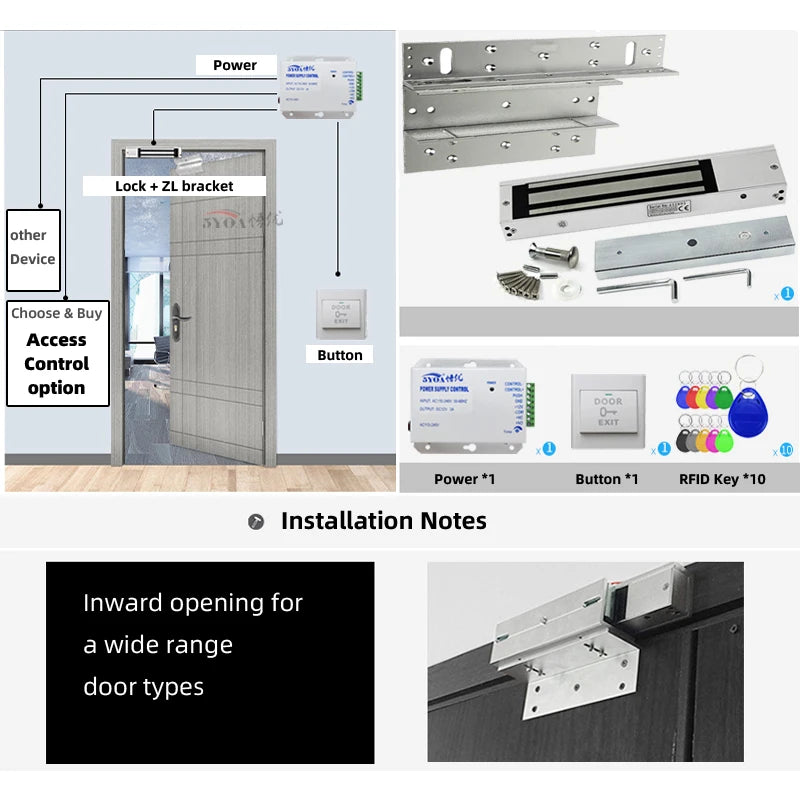

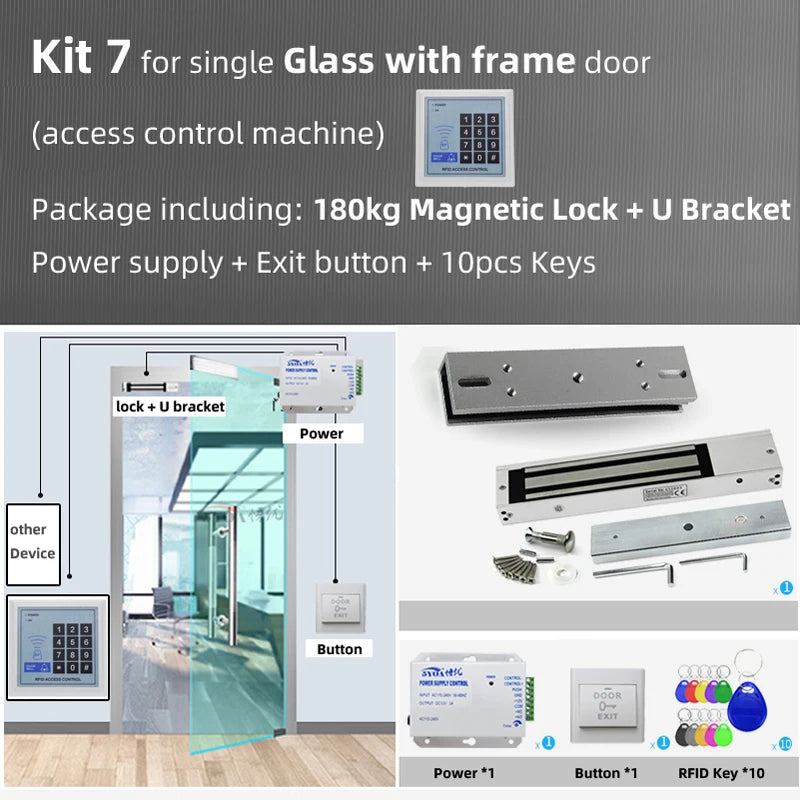

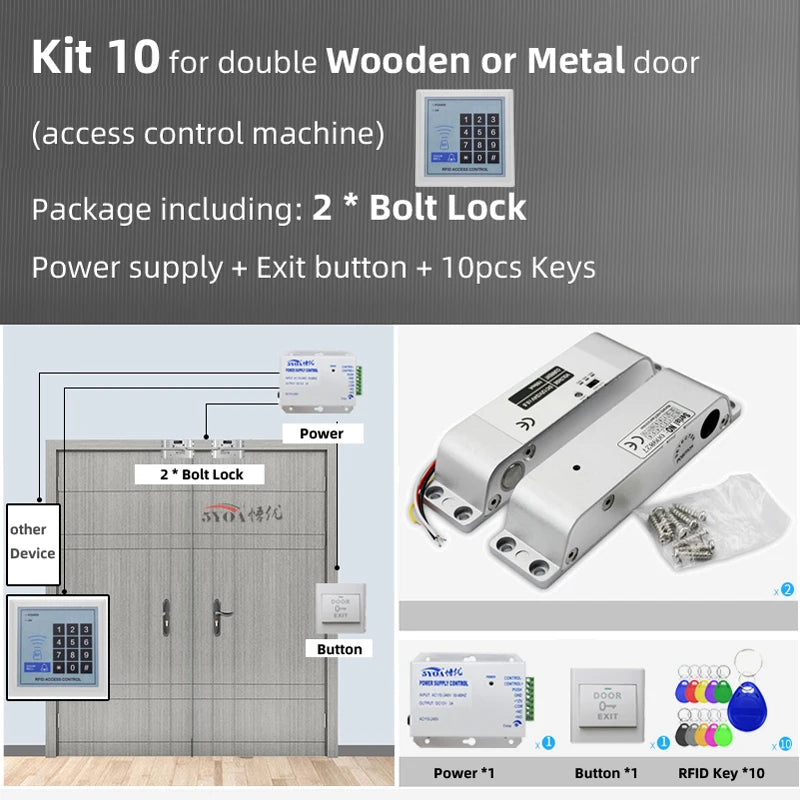

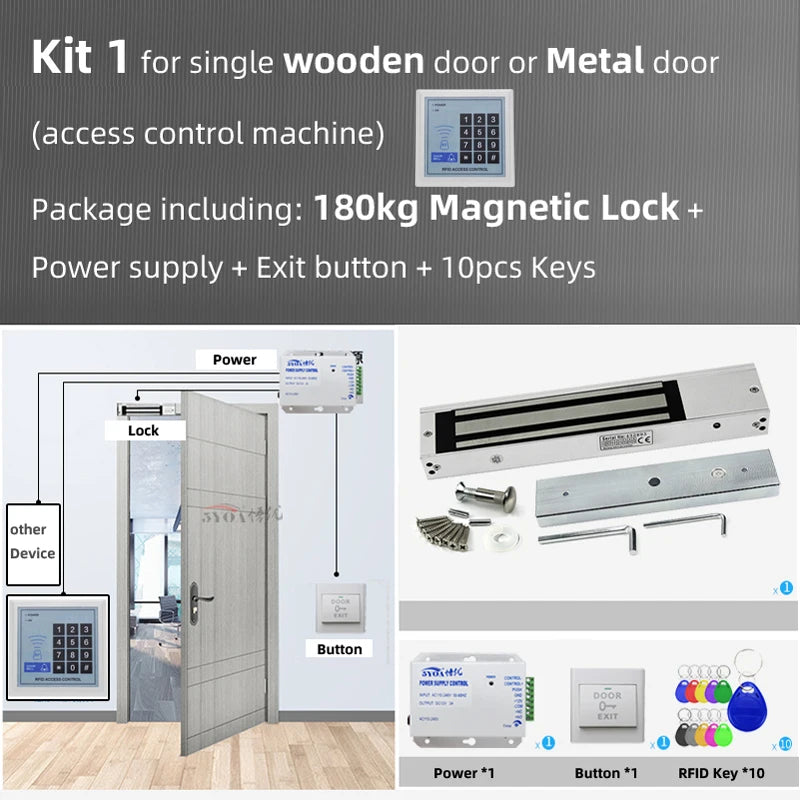

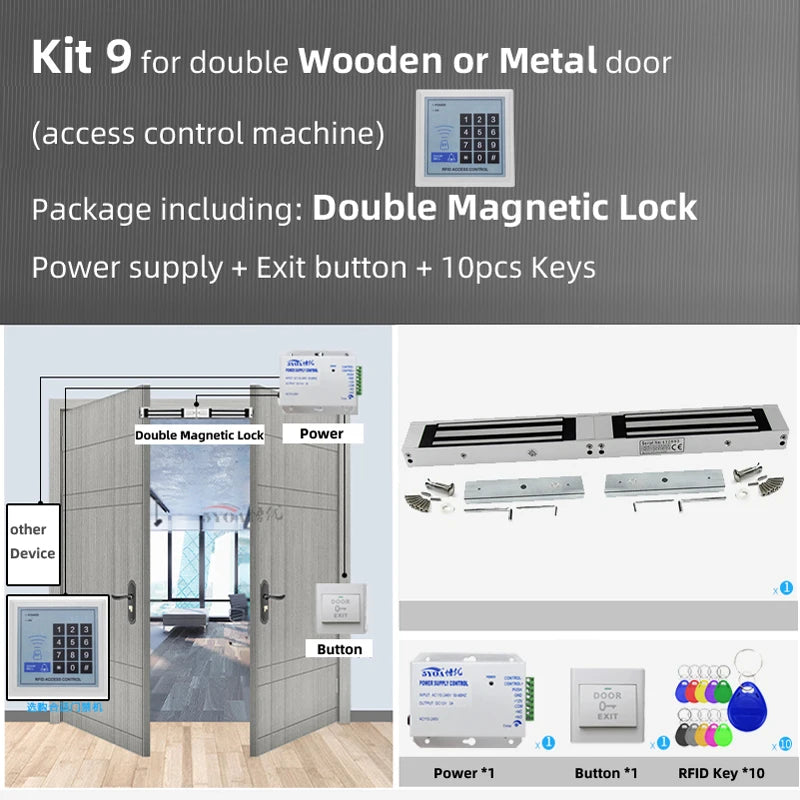

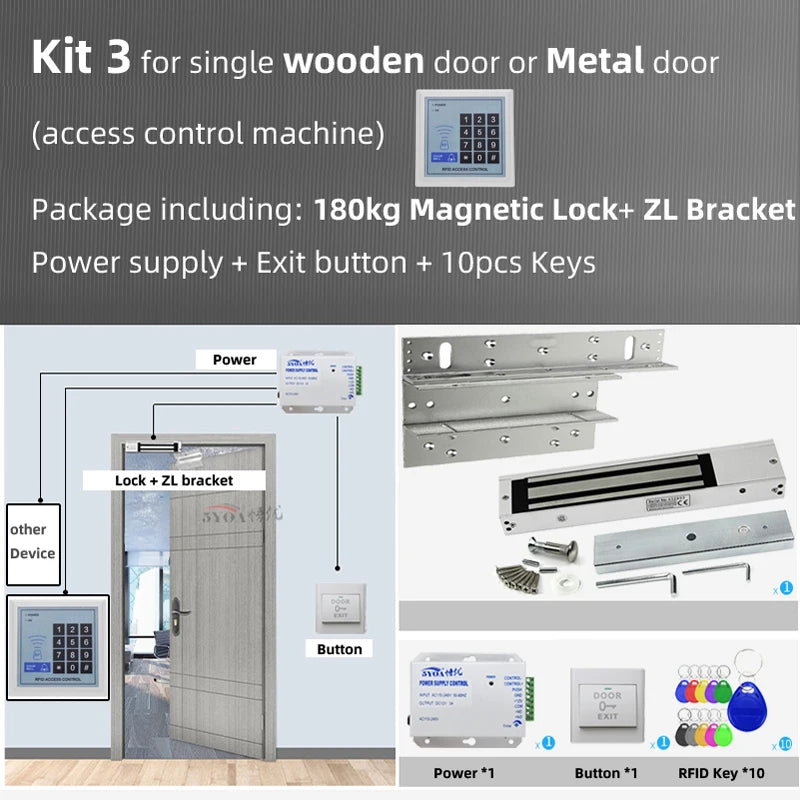

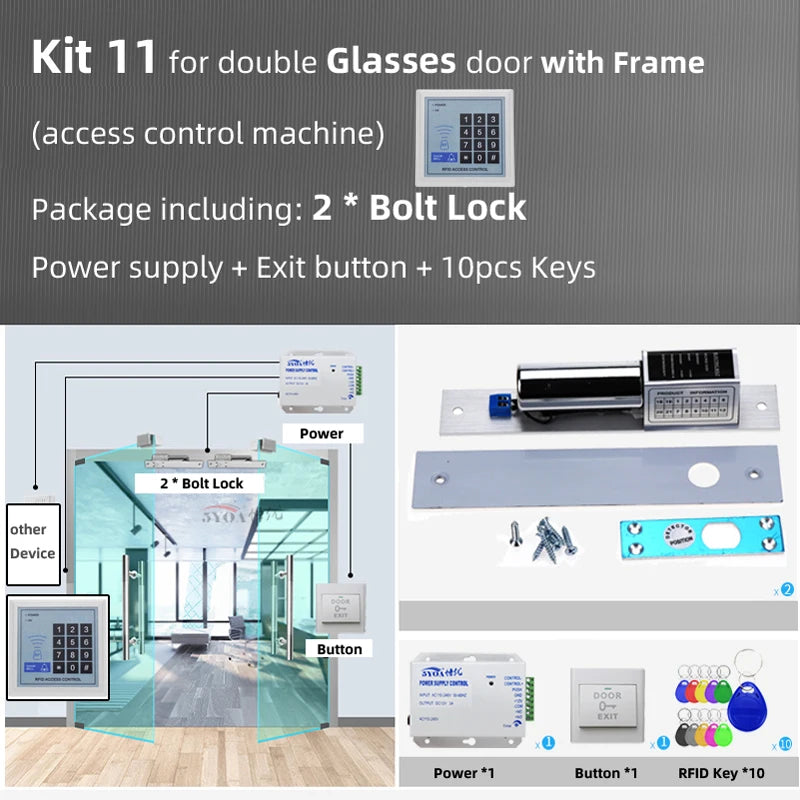

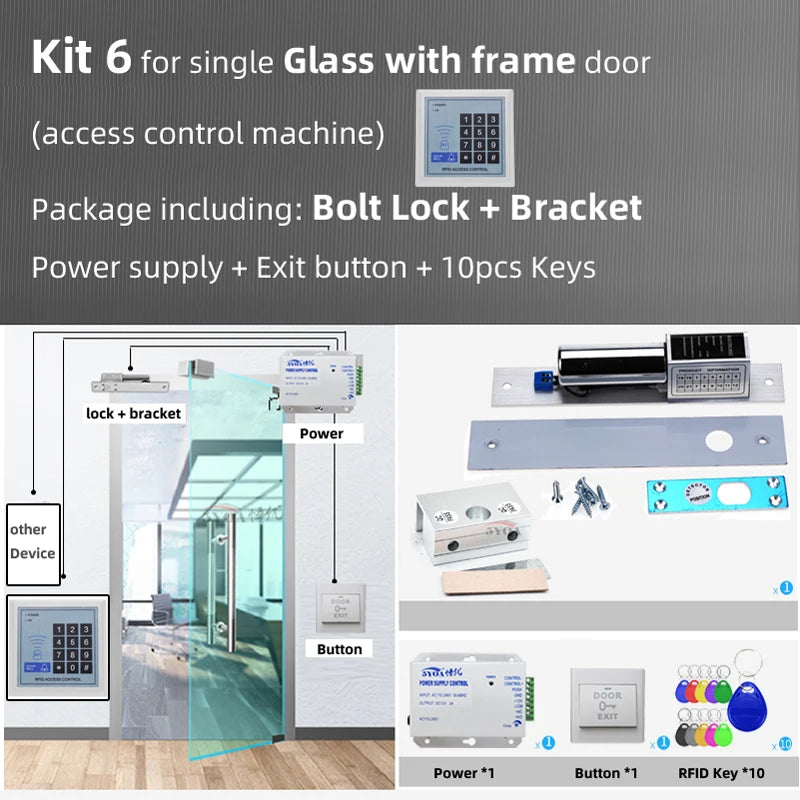

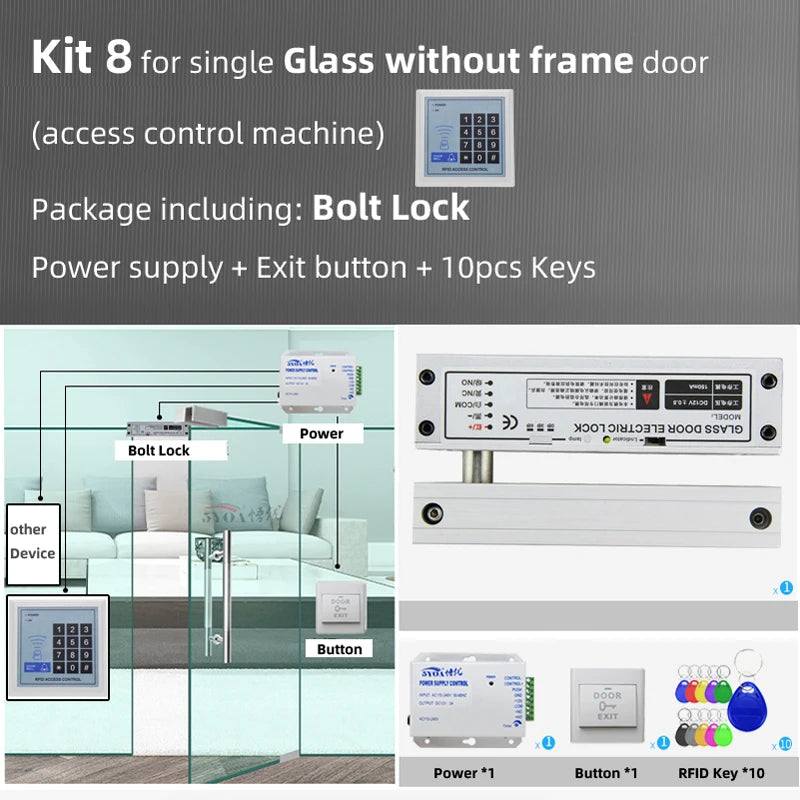

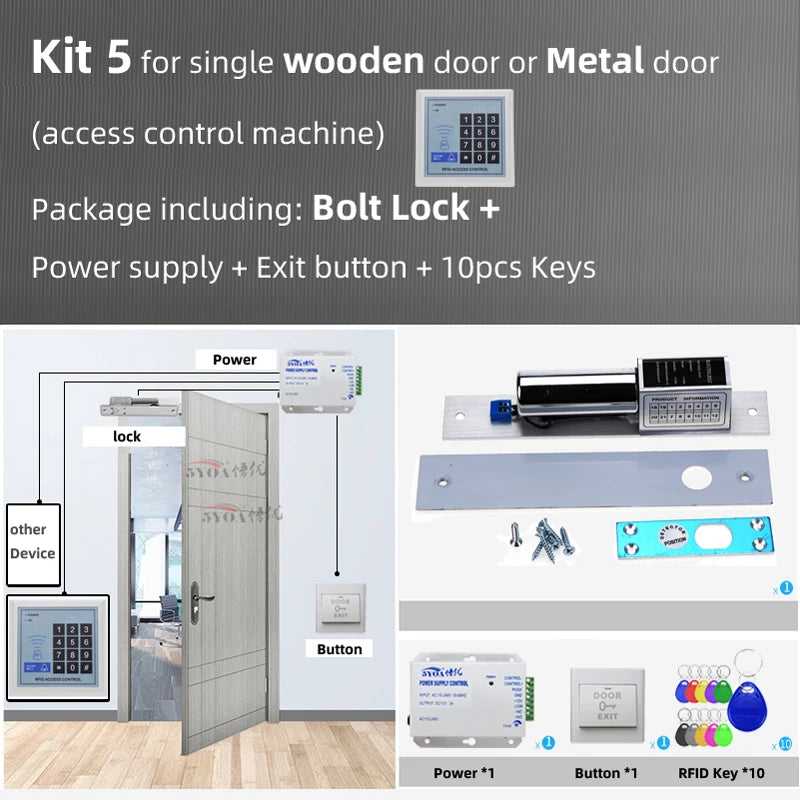

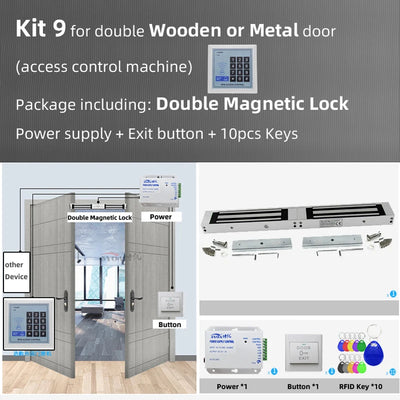

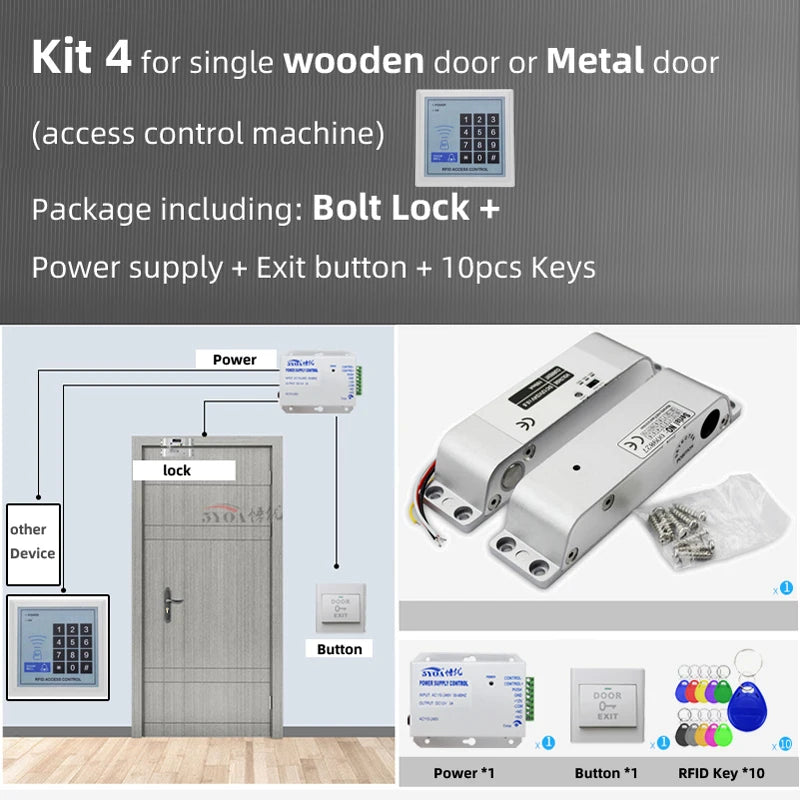

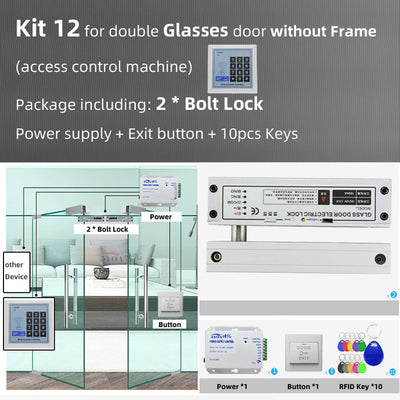

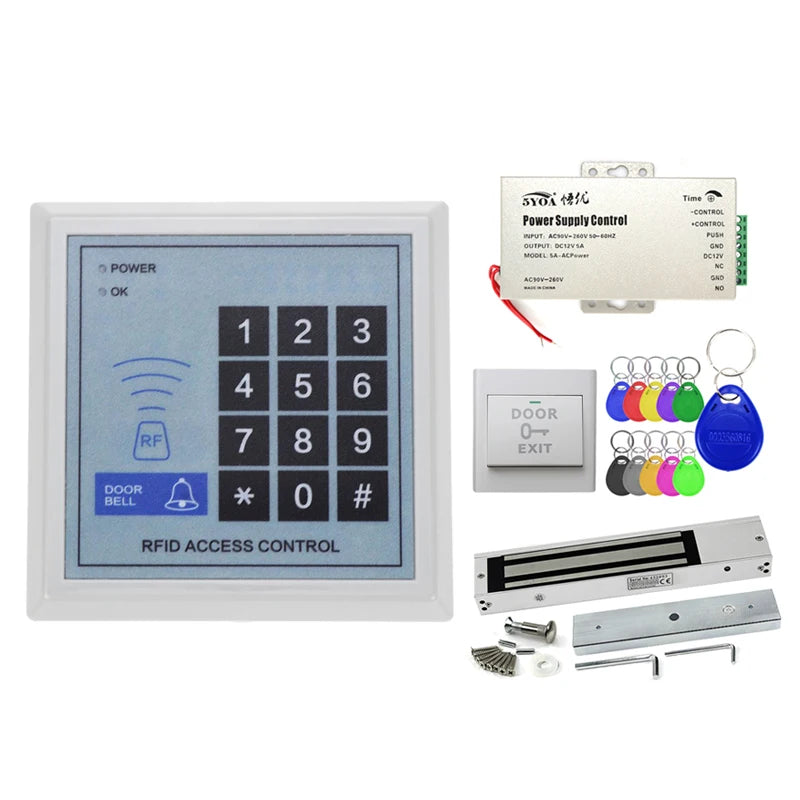

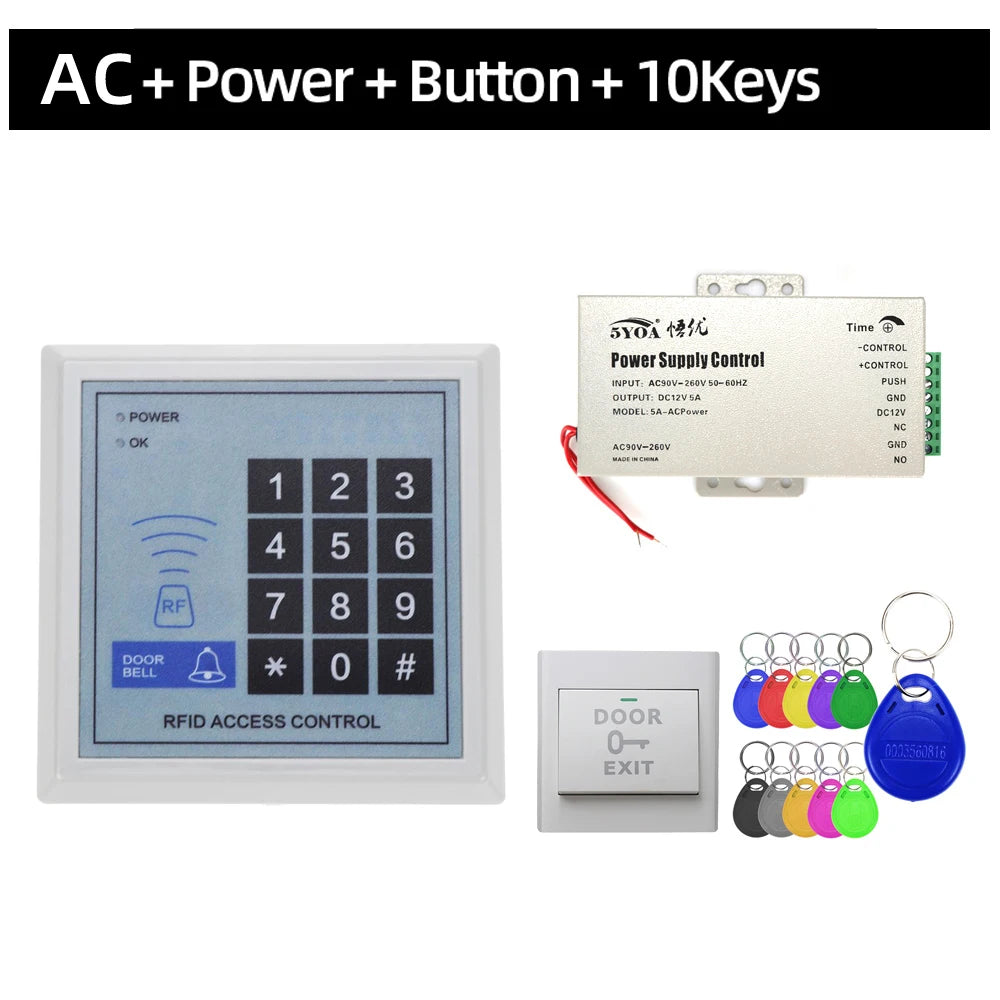

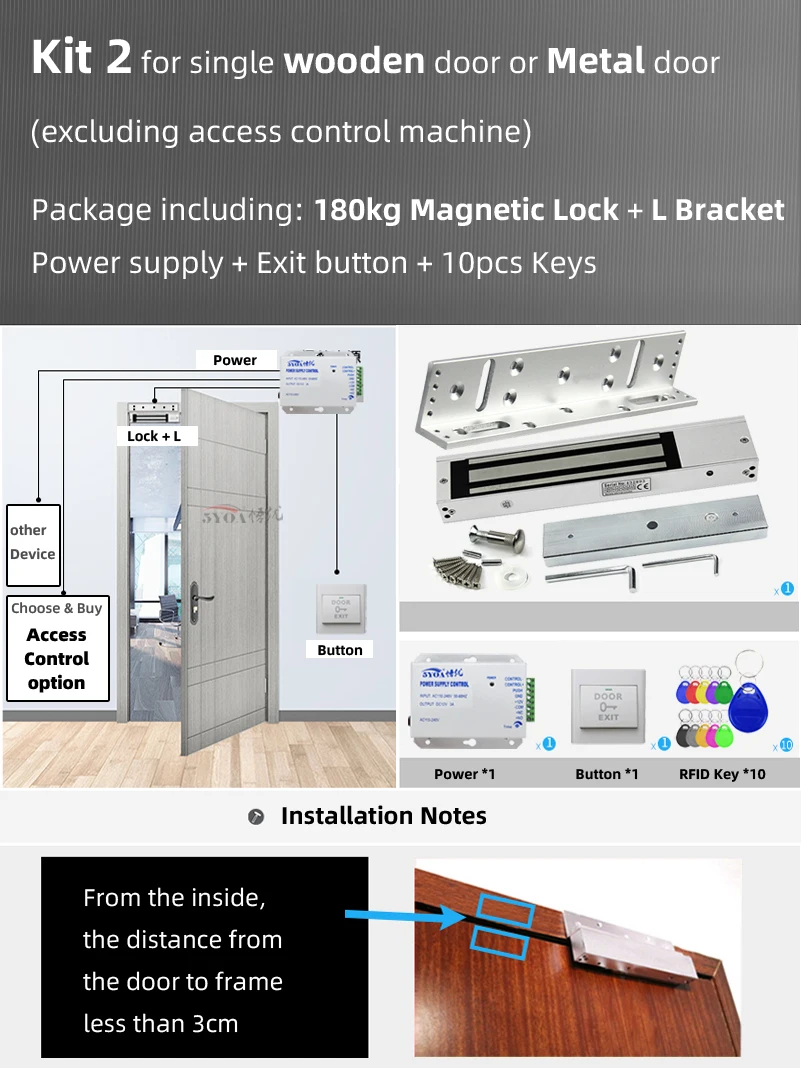

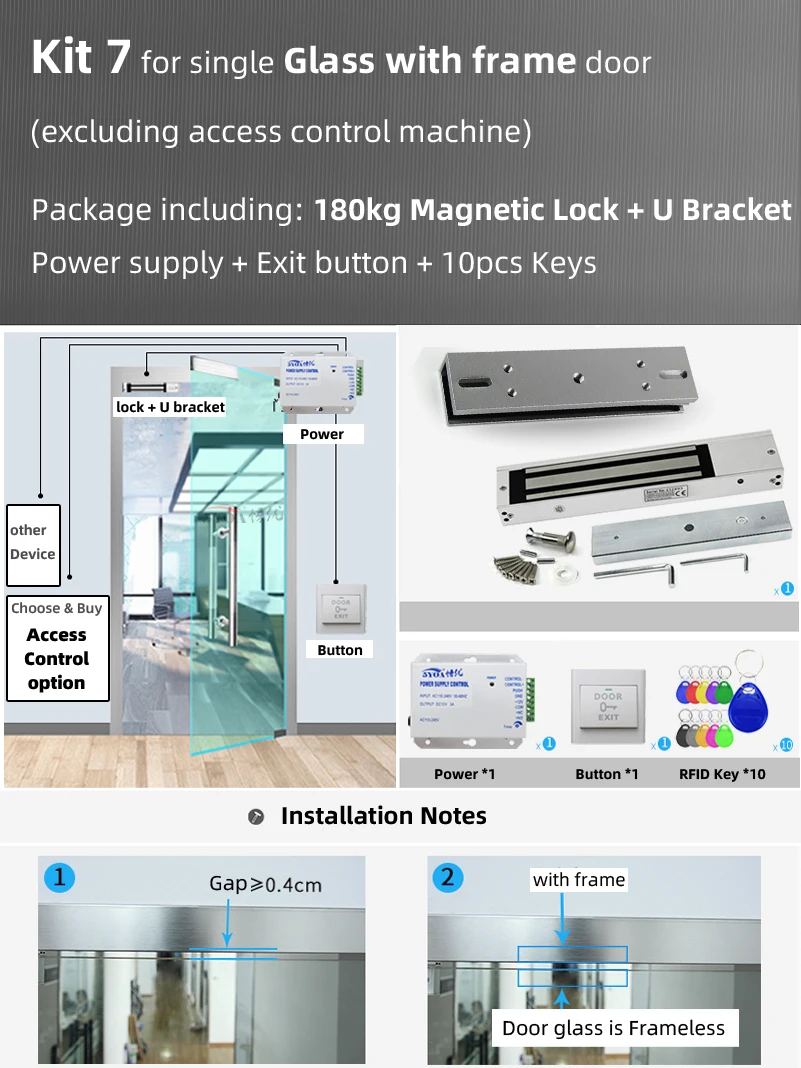

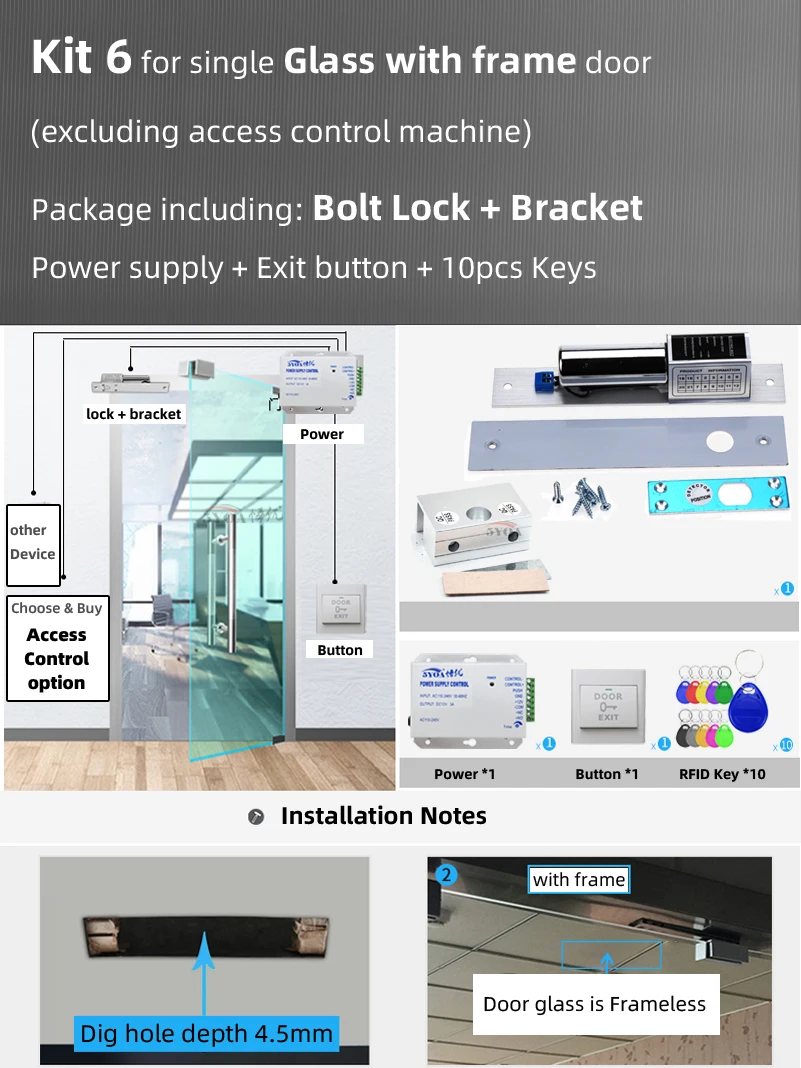

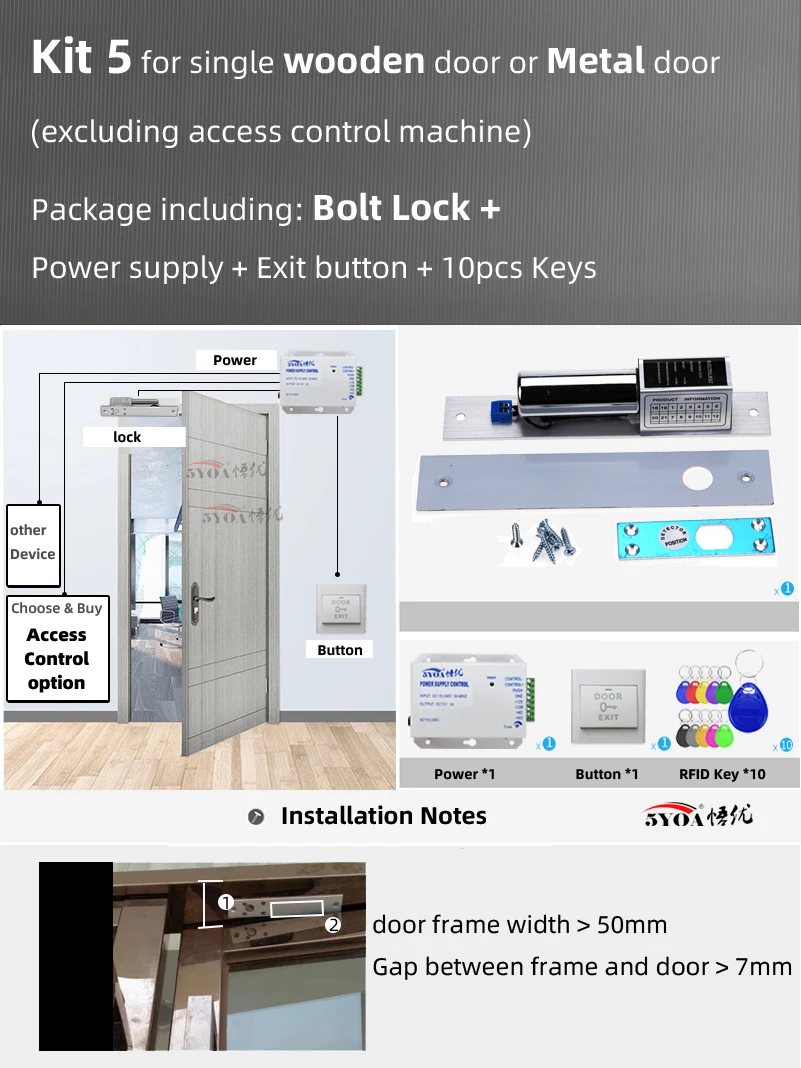

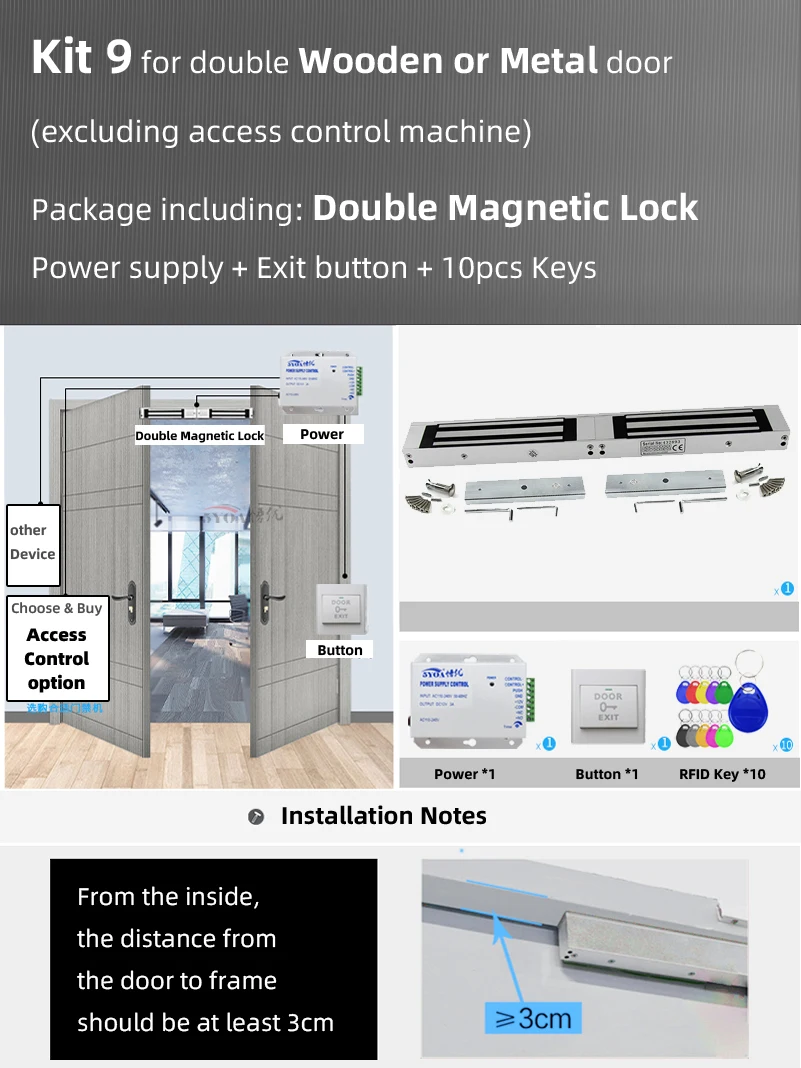

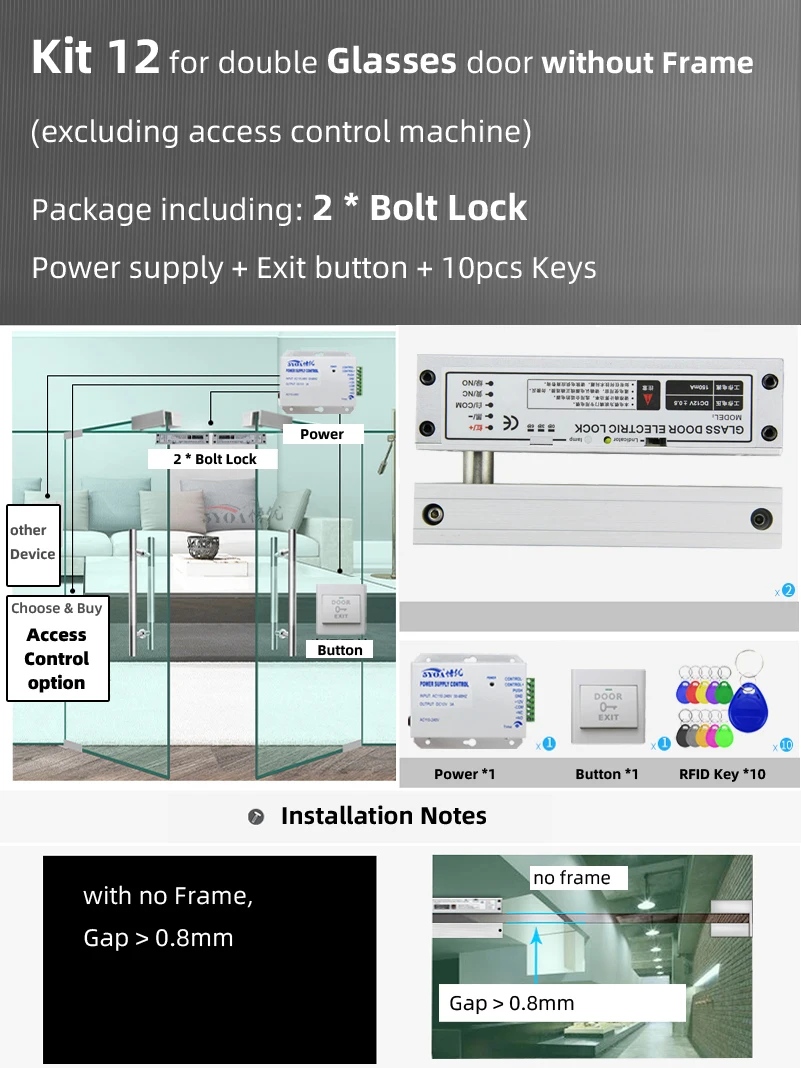

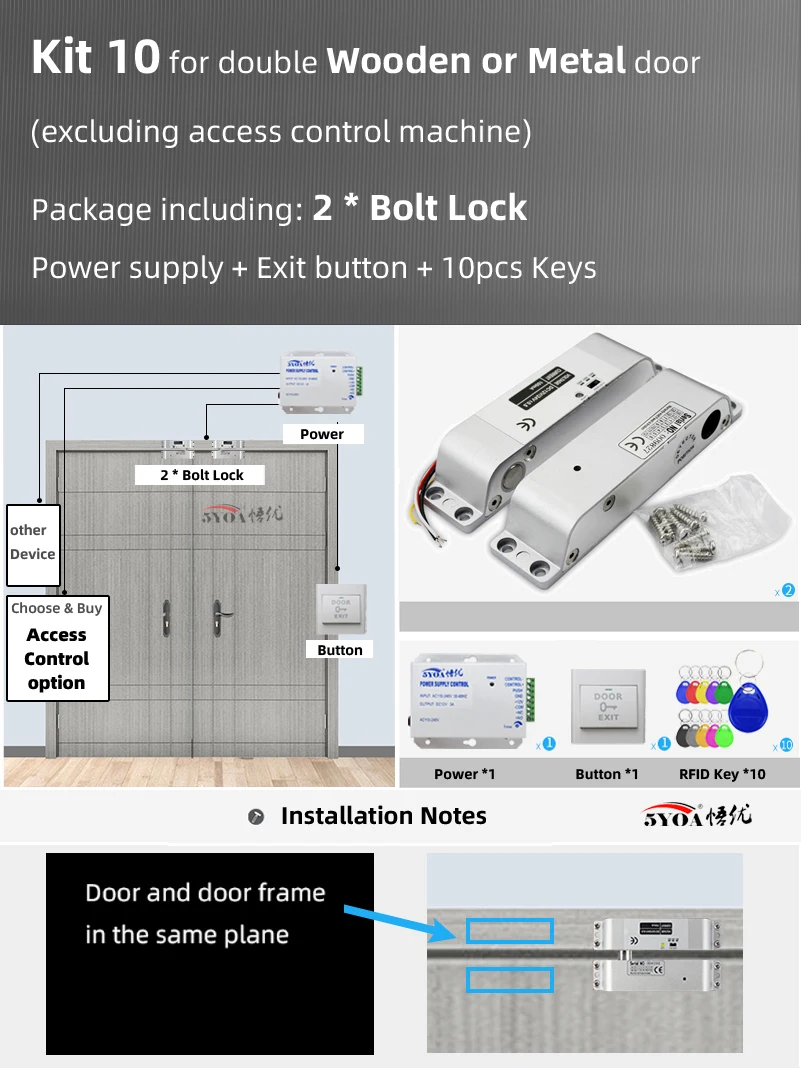

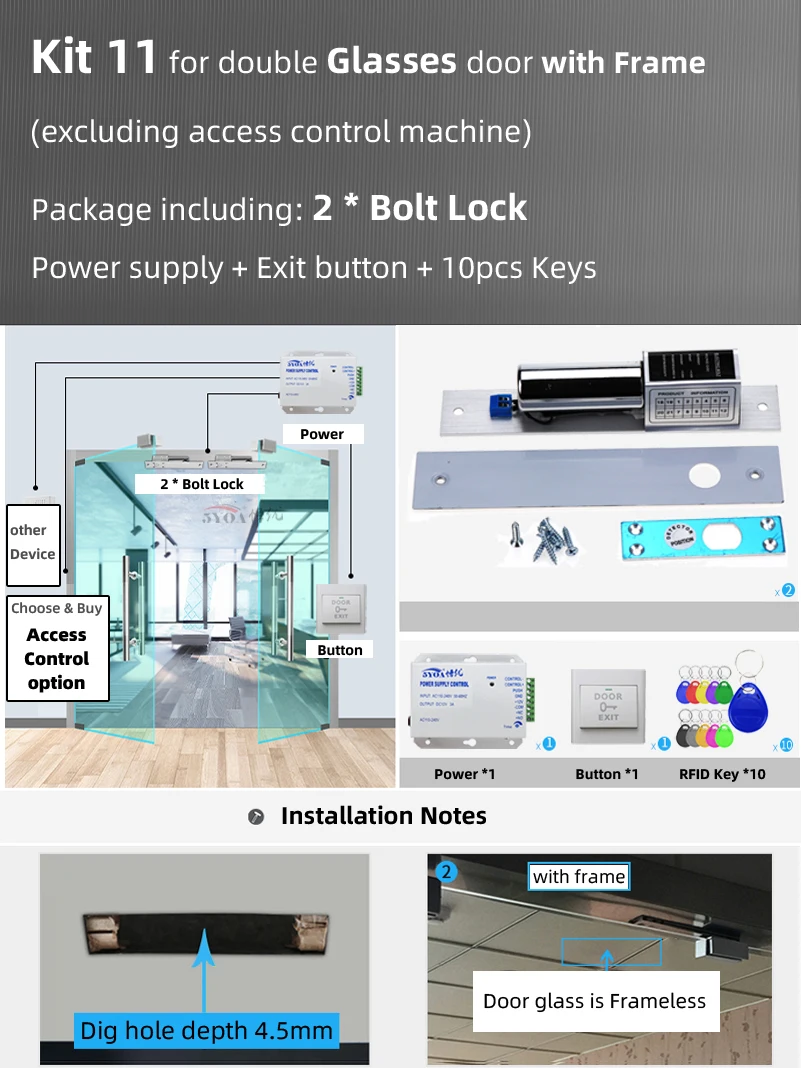

Access Control Kit Examples
