SPECIFICATIONS

Brand Name: LTTZ

Use: Electric Door

Use: Automated curtains

Origin: Mainland China

Hign-concerned Chemical: None

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Package: Yes

Model Number: Receiver Switch

Size: 9.4*6.0*28.5(cm)

Operating voltage: AC/DC 9V-24V

Static working current: ≤7mA

Operating temperature: -40℃ -+ 80℃

Receiving sensitivity: ≥-112dBm

Operating frequency: 433MHz

Contact current: ≤3A

Remote control capacity: 400

Choice: yes

semi_Choice: yes

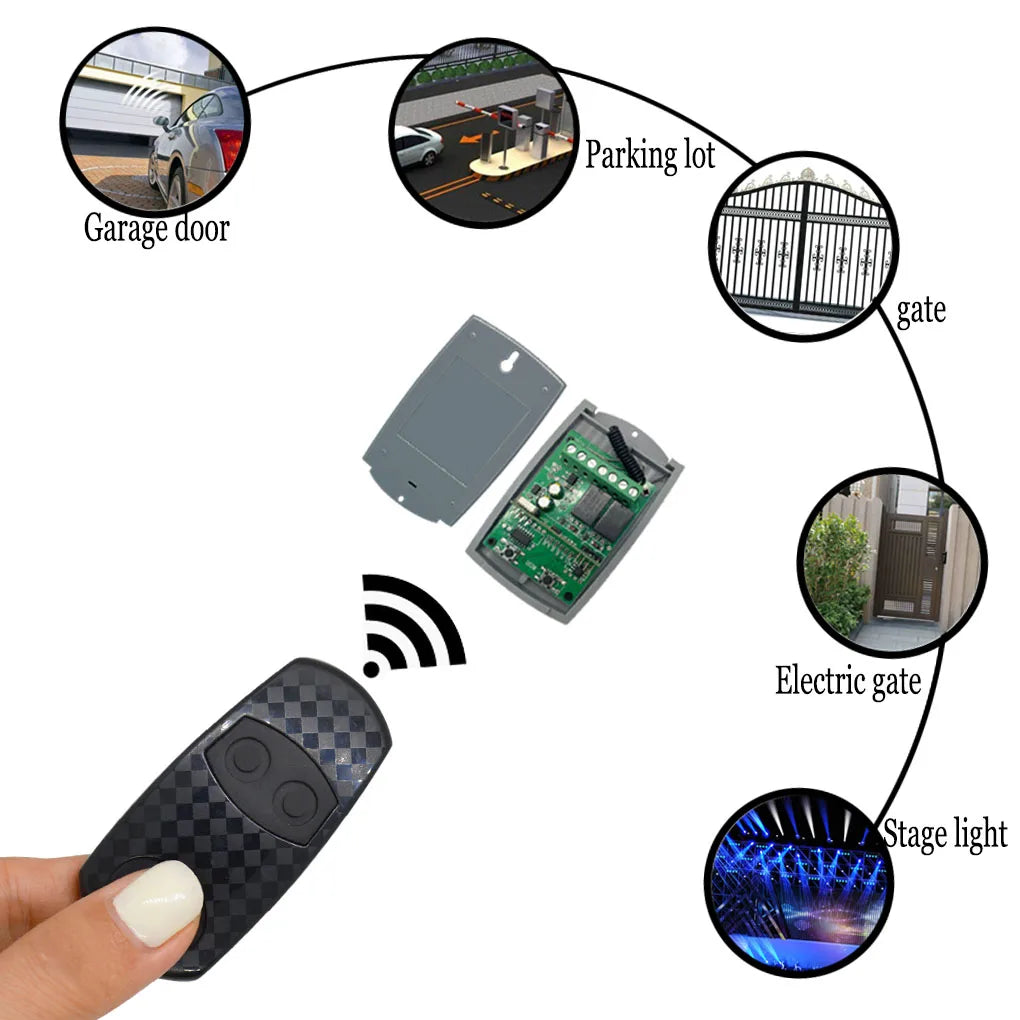

Application: Mainly used in electric doors, Windows, lifting equipment, gate, elevator, industrial control and security industry and other fields

Size: 94mm*60mm*28.5mm

Operating voltage: AC/DC 9V-24V

Static working current: ≤7mA

Operating temperature: -40℃ -+ 80℃

Receiving sensitivity: ≥-112dBm

Operating frequency: 433MHz

Contact current: ≤3A

Remote control capacity: 400

This product is a universal intelligent controller, which can be used with most wireless remote controls on the market. Including fixed code (2262, 2260, 2264, 5326, M1E, M5E, etc.), learning code (1527, 2240, 6P20B, 6P20D, etc.), scroll code (HCS301, HCS300, HCS200, HCS201, HCS100, HCS101, etc.) and some custom remote control

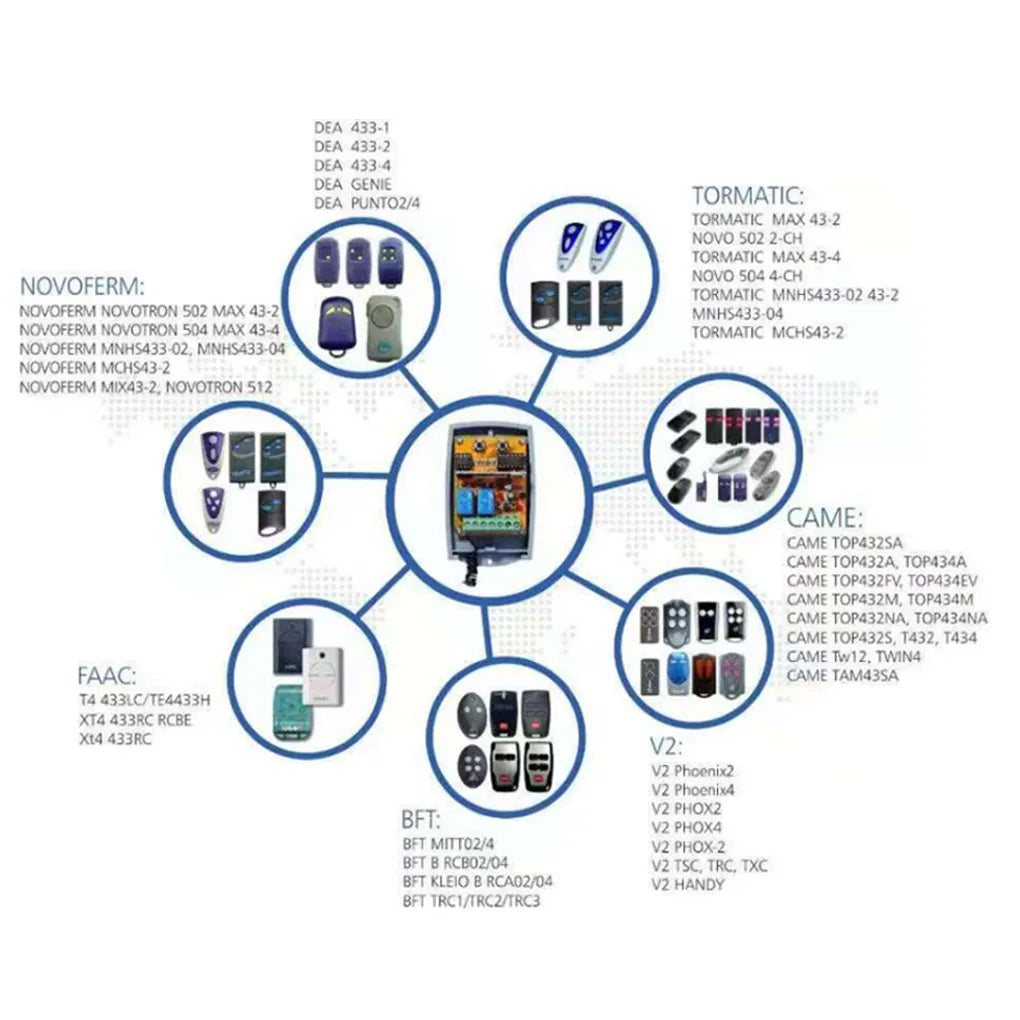

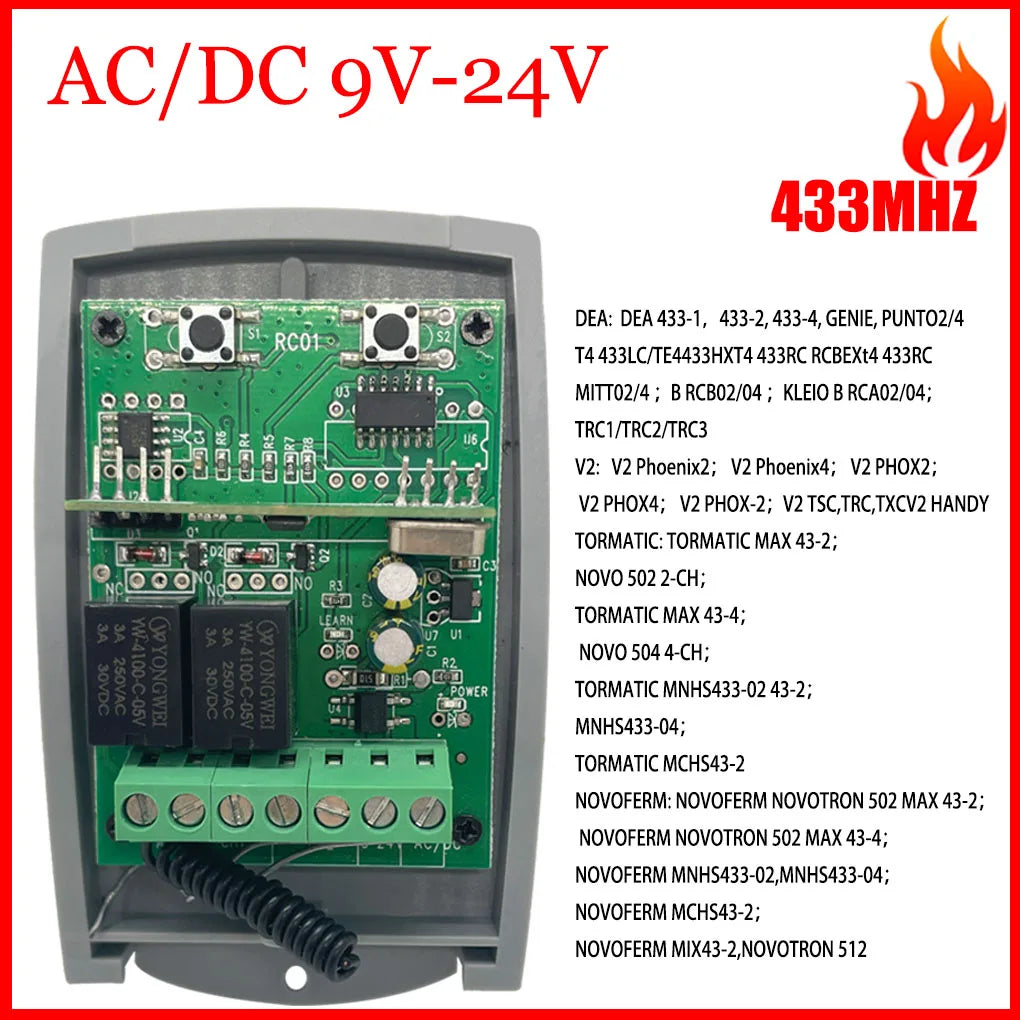

Compatible brand：

DEA: DEA 433-1，433-2, 433-4, GENIE, PUNTO2/4

T4 433LC/TE4433HXT4 433RC RCBEXt4 433RC

BFT MITT02/4 ； BFT B RCB02/04 ； BFT KLEIO B RCA02/04；BFT TRC1/TRC2/TRC3

V2: V2 Phoenix2； V2 Phoenix4； V2 PHOX2； V2 PHOX4； V2 PHOX-2；V2 TSC,TRC,TXCV2 HANDY

TOP32SA；

TOP432A,TOP434A；

TOP432FV,TOP434EV；

TOP432M,TOP434M；

TOP432NA,TOP434NA；

TOP432S,T432,T434；

TW12,TWIN4；

CAME TAM43SA

TORMATIC: TORMATIC MAX 43-2；

NOVO 502 2-CH；

TORMATIC MAX 43-4；

NOVO 504 4-CH；

TORMATIC MNHS433-02 43-2；

MNHS433-04；

TORMATIC MCHS43-2

NOVOFERM: NOVOFERM NOVOTRON 502 MAX 43-2；

NOVOFERM NOVOTRON 502 MAX 43-4；

NOVOFERM MNHS433-02,MNHS433-04；

NOVOFERM MCHS43-2；

NOVOFERM MIX43-2,NOVOTRON 512

Methods and steps of learning and clearing codes

Press the learning button on the controller, release the learning button when the LED light is on, and the controller enters the learning state. Then press the remote control button that needs to control the controller. When the LED light of the controller blinks quickly for 5 times and then goes off, it indicates that the learning has been successful. Learning button 1 on the controller learning remote control corresponding to relay 1, learning button 2 corresponding to relay 2, after learning only click.

If the remote control is lost, to make the remote control completely invalid, long press the learning button 1 or learning button 2 (more than 5S), when the LED light is off, the controller will automatically clear the contents of the memory. To reuse it, you just need to learn it again.

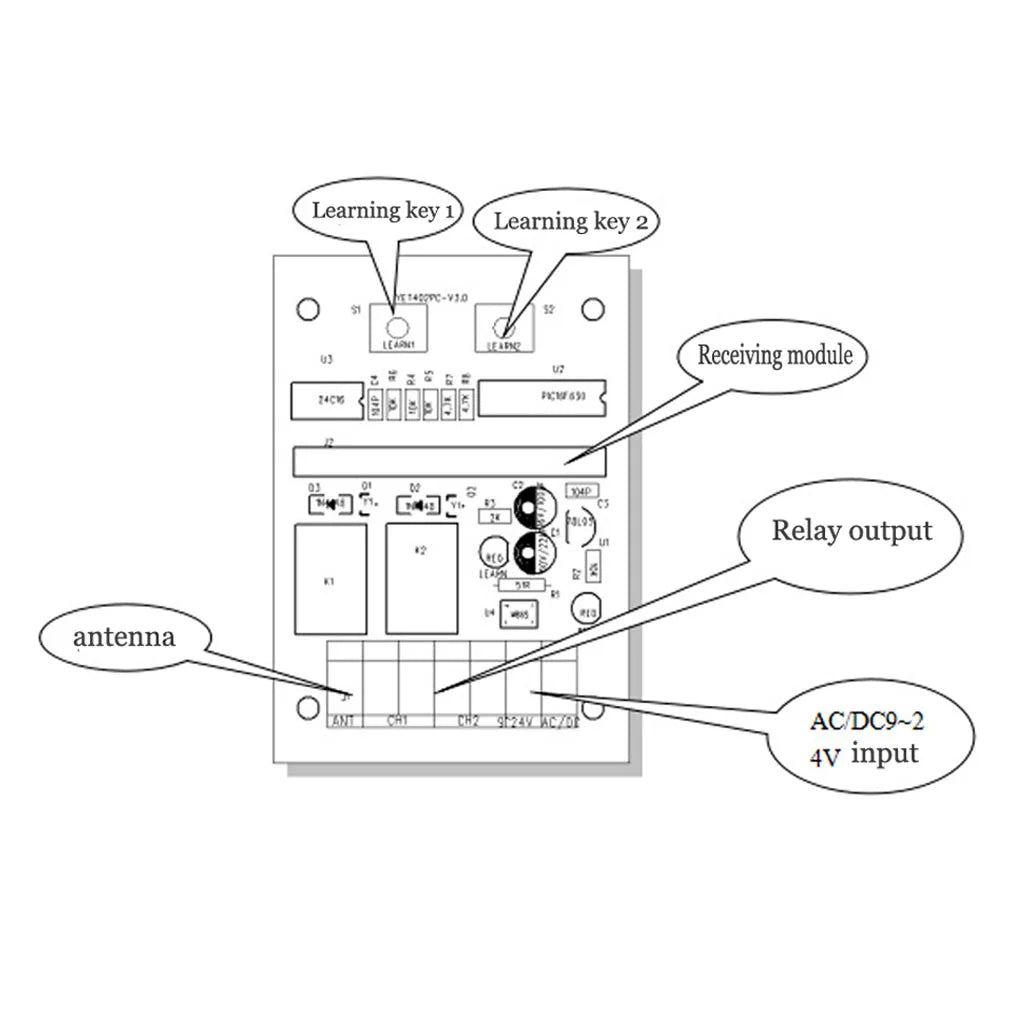

Wiring diagram
